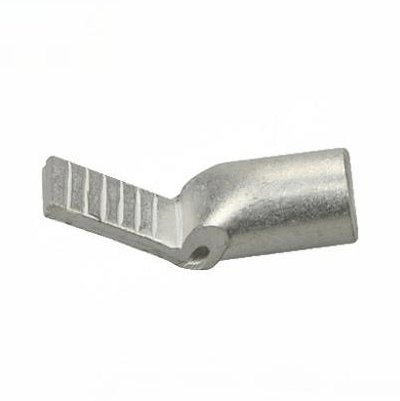

C45N10(5) C45N Cable Lugs 8AWG 10m㎡ Produce Cold-Press Terminals

Description

Premium T2 Copper Core

  • Made from ‌high-purity T2 copper‌ (99.9%) for superior conductivity and corrosion resistance.
  • Ensures low resistance and long-term reliability in demanding electrical environments.

Precision Cold-Press Design

  • Cold-press termination‌ technology creates a permanent, gas-tight connection for ‌8AWG (10mm²) cables‌.
  • Engineered to prevent loosening under vibration, ideal for industrial and renewable energy systems.

Certified Performance

  • Meets ‌UL 467‌ and ‌IEC 61238‌ standards for safety and reliability.
  • Suitable for switchgear, battery banks, and power distribution applications.

Dimensions

ΦD(mm)6.9
Φd(mm)4.9
W(mm)5
L(mm)28
C(mm)13

General Specifications

MaterialPure Copper
Copper Content≥99.9%
SurfaceTin-Plated
Inspection WindowWith inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage35KV
Environmental Specifications
Operating Temperature-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
IncludedLug
Packaging Quantity and UOM1 pcs
Certifications
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system

Wire harness finished product

Cable Lugs Application
