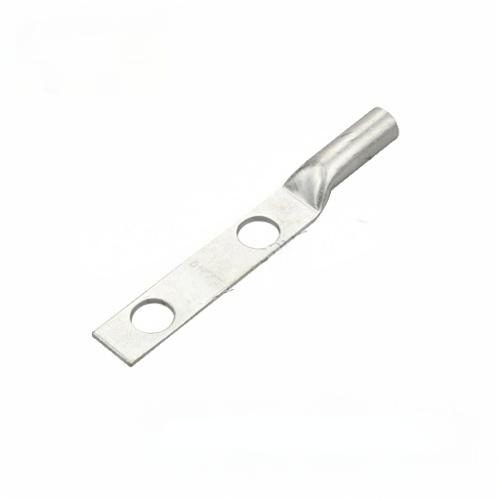

CL22-2H-6 Copper Tube lugs 4AWG 25mm² Tin-Plated Without inspection window

Description

High-performance ‌T2 copper‌ terminal featuring:

  • ‌Cold-forged seamless barrel‌ (99.9% purity) with 100% IACS conductivity for energy-efficient connections
  • ‌25mm²/4AWG capacity‌ optimized for substation busbars and motor terminals
  • ‌Hexagonal crimp zone‌ ensures vibration-resistant connections (IEC 61373 compliant)
  • ‌Tin-plated surface‌ resists oxidation in humid environments (-40°C to 105°C operational range)

‌UL 486C-certified‌ for 600V applications with salt spray resistance >500 hours.

Send email to us

Dimensions

φE(mm)6.4
ΦD(mm)11.3
Φd(mm)7.7
W(mm)16
B(mm)28.5
L(mm)119.2
H(mm)45

General Specifications

MaterialPure Copper
Copper Content≥99.9%
Tongue AngleStraight
SurfaceTin-plated
Inspection WindowWith inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage35KV
Environmental Specifications
Operating Temperature-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
IncludedLug
Packaging Quantity and UOM1 pcs
Certifications
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
