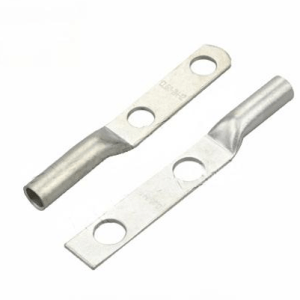

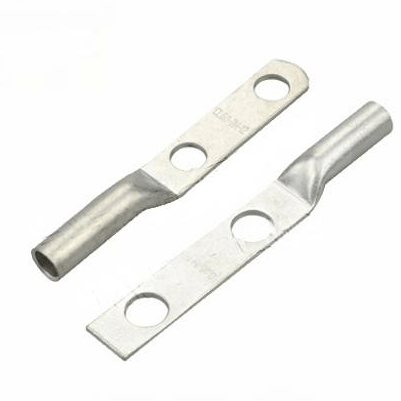

Cl38-2H-6 copper tube cable lug 2AWG 35m㎡ 2 holes Tinned Connecting Cable Lug

Description

‌Premium T2 Copper Construction‌

Made from ‌high-purity T2 copper (99.9%)‌ for superior conductivity and durability
Ensures low electrical resistance and long-term reliability in harsh environments.

‌Dual-Hole Tinned Design‌

Engineered for ‌2AWG (35mm²)‌ cables, providing a secure and gas-tight connection
Tin-plated terminals enhance corrosion resistance and ensure stable performance under vibration.

‌Certified Performance‌

Compliant with ‌UL 467‌ and ‌IEC 61238‌ standards for safety and reliability
Ideal for industrial machinery, power distribution, and renewable energy systems.

‌Applications‌

Industrial control panels
Electrical substations
Battery banks
High-current power connections

Send email to us

Dimensions

φE(mm)	6.4
ΦD(mm)	12.4
Φd(mm)	9.8
W(mm)	18.3
B(mm)	31.7
L(mm)	120
H(mm)	45

General Specifications

Material	Pure Copper
Copper Content	≥99.9%
Tongue Angle	Straight
Surface	Tin-plated
Inspection Window	With inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage	35KV
Environmental Specifications
Operating Temperature	-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature	-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
Included	Lug
Packaging Quantity and UOM	1 pcs
Certifications
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
