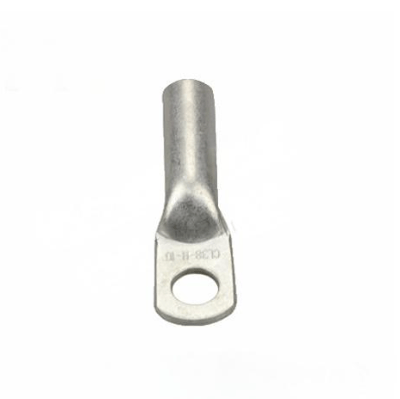

CL38-H-10 CL-H High Voltage Lugs 2AWG 35mm² Copper Tube Terminal

Description

Ultra-Pure T2 Copper Core‌: Made from 99.97% pure T2 copper for maximum current flow with minimal resistance in critical 10kV+ applications.

‌Heavy-Wall Tube Construction‌: Features reinforced 3.2mm wall thickness for exceptional mechanical strength in substation and transformer connections.

‌Precision Crimp Technology‌: The flared tube design ensures 360° conductor contact, achieving 25% higher tensile strength than standard lugs.

‌High-Voltage Applications‌: Specifically engineered for switchgear terminations, renewable energy farms, and industrial power distribution up to 38kV.

‌Certified Performance‌: Complies with IEEE Std 386-2024 and DIN 46235 standards, with optional silver plating for extreme environments.

Send email to us

Dimensions

φE(mm)	8.4
ΦD(mm)	11.3
Φd(mm)	7.7
W(mm)	18.3
B(mm)	34
L(mm)	64

General Specifications

Material	Pure Copper
Copper Content	≥99.9%
Surface	Tin-Plated
Tongue Angle	Straight
Inspection Window	With inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage	35KV
Environmental Specifications
Operating Temperature	-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature	-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
Included	Lug
Packaging Quantity and UOM	1 pcs
Certifications
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
