您现在的位置： / / / / Customized DJ611-F2.2X0.6A (8100-0458) 2.2MS Male terminals

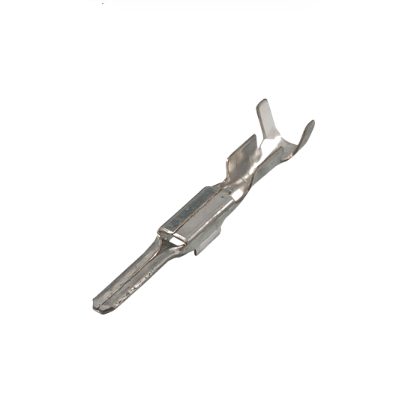

DJ611-F2.2X0.6A (8100-0458)

Short Description

 Part No. DJ611-F2.2X0.6A
 Material H65
 Thickness (mm) 0.3
 Wire Range (mm²) 0.5~1.25
 Package Qty 3000 PCS/ROLL
 Basic Spec L: 27.2  W: 2.2  H: 0.6
 Notes 8100-0458
Send email to us

Description

The DJ611-F2.2X0.6A (P/N: 8100-0458) series delivers precision connectivity for demanding applications:

  • ‌2.2mm tin/gold-plated brass contacts‌ (3μm Au over 1μm Ni) for <15mΩ resistance
  • ‌Anti-vibration locking tab‌ prevents disengagement in high-shock environments (tested to 12G)
  • ‌Optimized crimp wings‌ for 20-22AWG wires with strain relief features
  • ‌High-temperature PA66 housing‌ rated for 125°C continuous operation
  • ‌CPA-ready design‌ for secure mating in automotive harnesses

Key applications: ‌Body control modules, industrial PLCs, and HVAC control systems‌. Compatible with JST SZF series receptacles.

Product Parameters

Attribute
Value
Female or MaleMale
MaterialCopper Alloy, Brass, Phosphor Bronze, Nickel.
PlatingTin
Sealed or UnsealedSealed
Operating Temperature range-40℃~120℃
FunctionFor connector,fix and waterproof in wire harness
CertificationTUV,T S16949,ISO14001 system and RoHS.

Compatible Parts

Application Sectors

Automobile manufacturing

Industrial equipment

Intelligent robots

New energy field

Applications in automotive manufacturing, industrial equipment, new energy fields, power systems, aerospace, robotics, smart homes, power systems, communication infrastructure, etc.
