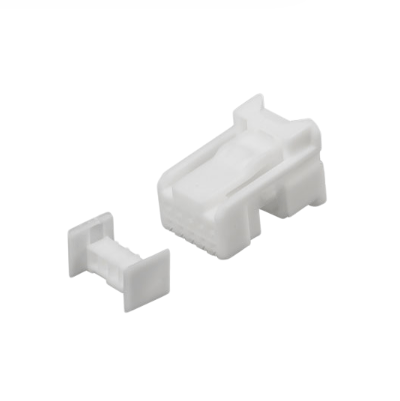

DJ3101-0.64-21 (6098-3909)

Short Description

 TypeDJ3101-0.64-21
 Pin10
 MaterialPBT
 ColourWhite
 Applicable TerminalT321-0.64
 Applicable Wire Seal/
 Notes6098-3909
Send email to us

Description

The ‌DJ3101-0.64-21‌ (OEM# 6098-3909) features:

  • ‌10-circuit 0.64mm micro-pitch‌ for space-constrained PCB designs
  • ‌High-temp LCP material‌ (260°C reflow capable, UL94 V-0 rated)
  • ‌Dual-stage locking‌ (TPA + CPA) meeting USCAR-25 vibration requirements
  • ‌IP67 sealing option‌ for underhood/transmission applications
  • ‌Direct replacement‌ for JST GH series and Molex 51021 connectors

Key applications: ‌Engine control units (ECUs), transmission sensors, and throttle body wiring‌. Certified to ISO 19642 and LV214-3 standards.

Product Parameters

Attribute
Value
Sealed/Unsealedunsealed
Male/FemaleF
Way
10
MaterialsPBT
ColorNatural
Contact resistance
Initial
8mΩ Max.
after durability tests
16mΩ Max.
Leak current3mA Max.
Insulation resistance100MΩ Min.

Compatible Parts

Application Sectors

Automobile manufacturing

Industrial equipment

Intelligent robots

New energy field

Applications in automotive manufacturing, industrial equipment, new energy fields, power systems, aerospace, robotics, smart homes, power systems, communication infrastructure, etc.
