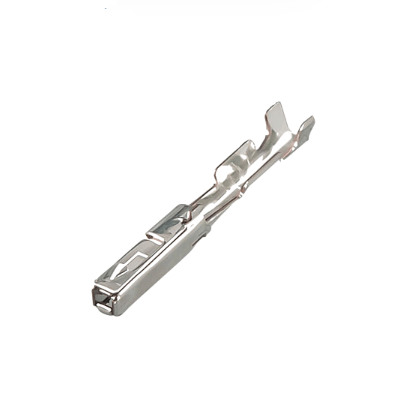

DJ321-0.64A (8240-0182)

The DJ321-0.64A (8240-0182) is a high-reliability 0.64mm pitch female terminal featuring:

• ‌Precision phosphor bronze construction‌ with matte tin plating (3μm) for stable contact resistance <20mΩ
• ‌Dual-contact beam design‌ ensures 50+ mating cycles in engine vibration environments (ISO 16750-3 compliant)
• ‌Optimized insulation grip‌ for 22-26 AWG wires with 40N minimum pull-out force
• ‌Tape-and-reel packaging‌ (2,500pcs/reel) compatible with JIS Z2305 standards for automated assembly
• ‌-40°C to +125°C operating range‌ certified for automotive body control modules and HVAC systems

Key applications include ‌EV battery management systems and industrial servo motor connectors‌. Custom options available for reel quantities and lead-free plating alternatives.
