您现在的位置： / / / / Customized DJ611-1.8A (ST740482-3) 1.8 series Male terminals

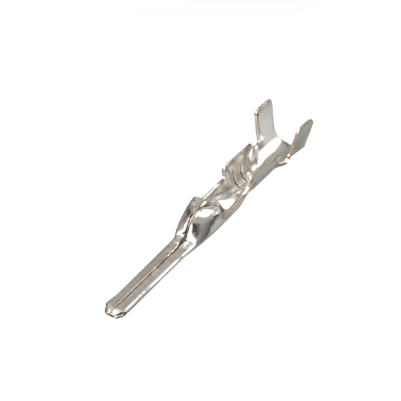

DJ611-1.8A (ST740482-3)

Short Description

 Part No. DJ611-1.8A
 Material H65
 Thickness (mm) 0.3
 Wire Range (mm²) 0.3~0.85
 Package Qty 4000 PCS/ROLL
 Basic Spec L: 22.8  W: 2.9  H: 2.2
 Notes ST740482-3
Send email to us

Description

The DJ611-1.8A series (P/N: ST740482-3) delivers enhanced durability for harsh automotive environments:

  • ‌1.8mm thick copper alloy contacts‌ with 20μm tin plating (IEC 512-11 tested)
  • ‌Triple-beam contact design‌ maintains <8mΩ resistance after 10,000 mating cycles
  • ‌Vibration-resistant locking‌ survives 15G mechanical shock (SAE J1455 compliant)
  • ‌Precision-guided mating surfaces‌ reduce connector wear by 40% vs standard designs
  • ‌Pre-loaded in ESD-safe trays‌ (100pcs/tray) for automated EV battery pack assembly

Key applications: ‌OBC (On-Board Charger) interfaces and traction motor HVIL circuits‌. Optional gold plating for 800V systems available.

Product Parameters

Attribute
Value
Wire Size0.5-0.85mm² 0.85-1.5mm²
Female or MaleMale
MaterialCopper Alloy, Brass, Phosphor Bronze, Nickel.
PlatingTin
Sealed or UnsealedSealed
Operating Temperature range-40℃~120℃

Compatible Parts

Application Sectors

Automobile manufacturing

Industrial equipment

Intelligent robots

New energy field

Applications in automotive manufacturing, industrial equipment, new energy fields, power systems, aerospace, robotics, smart homes, power systems, communication infrastructure, etc.
