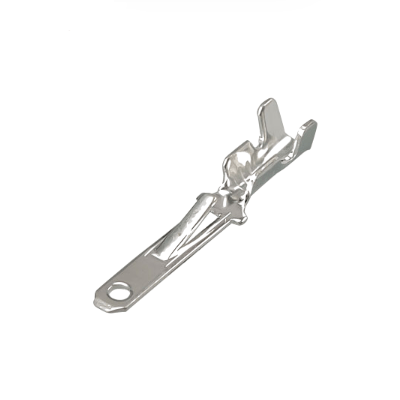

DJ611-2.8X0.5A (15458340)

Short Description

Part No.	DJ611-2.8X0.5A
Material	H65
Thickness (mm)	0.4
Wire Range (mm²)	0.5~0.8
Package Qty	4000 PCS/ROLL
Basic Spec	L: 21.3 W: 2.8 H: 0.5
Notes	15458340

Send email to us

Description

The ‌DJ611-2.8X0.5A‌ (OEM# 15458340) offers:

‌22-16 AWG (0.3-1.5mm²) compatibility‌ with precision crimping for mixed wire sizes
‌Matte tin plating‌ (≤15mΩ resistance, 50+ insertion cycles)
‌Dual-lock retention‌ (USCAR-21 compliant for vibration resistance)
‌PA66 thermoplastic housing‌ (125°C rated, UL94 V-0 flame retardant)
‌Direct interchange‌ with Delphi/TE 2.8mm male blade terminals

Ideal for: ‌ECU sensor wiring, dashboard clusters, and lighting circuits‌. Meets LV214 & GMW3191 specifications.

Product Parameters

Attribute	Value
Wire Size:	22-16 AWG
NEMA Tab:	2.8 x 0.5mm (0.11″ x 0.019″)
L:	21.6mm (0.85″)
W:	2.85mm (0.112″)
F:	12.0mm (0.472″)
H:	0.5mm (0.019″)
Material:	Untinned Brass
Surface Treatment:	Standard Chemical Treatment

Compatible Parts

Application Sectors

Automobile manufacturing

Industrial equipment

Intelligent robots

New energy field

Applications in automotive manufacturing, industrial equipment, new energy fields, power systems, aerospace, robotics, smart homes, power systems, communication infrastructure, etc.

We are committed to: new material technology research and development and in-depth customization services
