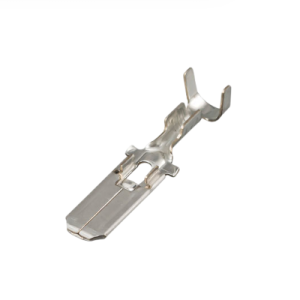

DJ6118-6.3A (ST740576-3)

The DJ6118-6.3A (P/N: ST740576-3) offers robust connectivity for high-current applications:

• ‌6.3mm tin-plated brass male tab‌ with 50A current rating (ISO 8092 compliant)
• ‌Precision 0.8mm thickness‌ ensures stable contact pressure (tested for 25+ mating cycles)
• ‌Corrosion-resistant plating‌ (3μm tin over copper substrate) for humid environments
• ‌Compatible with standard 6.3mm female receptacles‌ (e.g., DJ627 series)
• ‌Optimized for automated insertion‌ with chamfered lead-in edges

Key applications: ‌Fuse box connections, starter motor wiring, and EV battery management systems‌. Meets USCAR-2 and LV214-3 standards.
