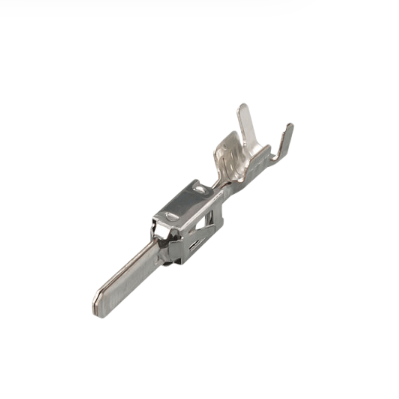

DJ613-E2.8X0.8 (1-962915-1 2-964302-1)

Short Description

 Part No. DJ613-E2.8X0.8A DJ613-E2.8X0.8B
 Material QSn QSn
 Thickness (mm) 0.3 0.3
 Wire Range (mm²) 0.5~0.85 1.0~2.0
 Package Qty 3000 PCS/ROLL 3000 PCS/ROLL
 Basic Spec L: 25.0  W: 2.8  H: 0.8 L: 25.0 W: 2.8  H: 0.8
 Notes1-962915-1  Waterproof type2-964302-1  Waterproof type
Send email to us

Description

The ‌DJ613-E2.8X0.8‌ terminal (compatible with TE 1-962915-1 & 2-964302-1) provides:

  • ‌20-17 AWG (0.5-1.0mm²) compatibility‌ with F-crimp design for high-current applications
  • ‌0.8μm selective gold plating‌ on mating surfaces (<10mΩ resistance)
  • ‌UL/CSA certified‌ tin-plated base material (105°C rating)
  • ‌Vibration-resistant‌ dual-beam contact (USCAR-2 Class II compliant)
  • ‌Direct replacement‌ for Delphi/TE power distribution systems

Ideal for: ‌Battery junction boxes, fuse block assemblies, and industrial control panels‌. Meets LV214 & GMW3191 standards.

Product Parameters

Attribute
Value
Wire Contact Termination Area Plating Material Tin
Contact Fabrication Stamped & Formed
Contact Size 2.8mm
Crimp TypeF-Crimp
Terminal Type Tab
Mating Tab Width 2.8 mm [ .11 in ]
Mating Tab Thickness .8 mm [ .03 in ]

Compatible Parts

Application Sectors

Automobile manufacturing

Industrial equipment

Intelligent robots

New energy field

Applications in automotive manufacturing, industrial equipment, new energy fields, power systems, aerospace, robotics, smart homes, power systems, communication infrastructure, etc.
