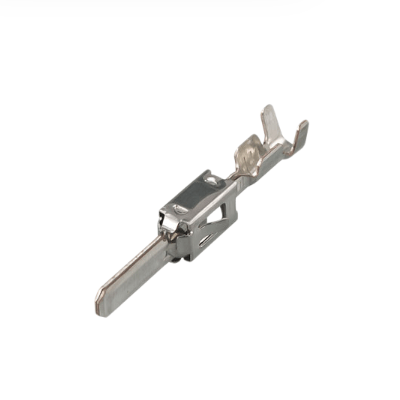

DJ6131-E2.8X0.8A (964296-1)

Short Description

Part No. DJ6131-E2.8X0.8A
 Material QSn
 Thickness (mm) 0.3
 Wire Range (mm²) 0.5~1.0
 Package Qty 3000 PCS/ROLL
 Basic Spec L: 24.2  W: 2.8  H: 0.8
 Notes 964296-1
Send email to us

Description

The DJ6131-E2.8X0.8A (P/N: 964296-1) offers:

  • ‌2.8mm pitch female terminal‌ for 20-22 AWG (0.35-0.5mm²) precision wiring
  • ‌Selective gold plating (0.8μm)‌ ensuring <15mΩ contact resistance (meets LV214-2)
  • ‌TE 964296-1 compatible‌ design with integrated CPA lock for ECU harnesses
  • ‌-40°C to +125°C‌ operating range (ISO 20653 dust/water protection)
  • ‌Dual-contact spring design‌ for vibration resistance per USCAR-2 Class III

Key applications: ‌Engine control units, transmission sensors, and ADAS camera modules‌. Exceeds GMW3191 and VW 60330 standards.

Product Parameters

Attribute
Value
GenderMale
For Use WithMicro Quadlock System Connector Housing
SeriesMicro Quadlock System
Minimum Wire Size mm²0.5mm²
Maximum Wire Size mm²0.75mm²
Termination MethodCrimp
Contact PlatingTin

Compatible Parts

Application Sectors

Automobile manufacturing

Industrial equipment

Intelligent robots

New energy field

Applications in automotive manufacturing, industrial equipment, new energy fields, power systems, aerospace, robotics, smart homes, power systems, communication infrastructure, etc.
