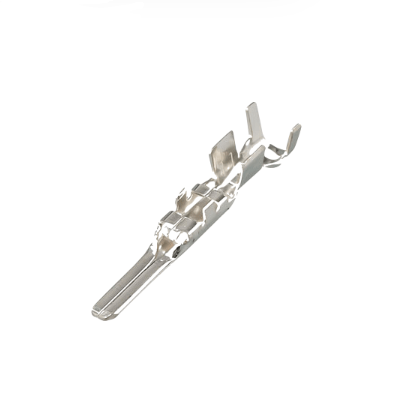

您现在的位置： / / / / Customized DJ614-2X0.6 (1500-0105 8230-4408) 2.0 mm Male Terminal

DJ614-2X0.6 (1500-0105 8230-4408)

Short Description

Part No. DJ614-2X0.6ADJ614-2X0.6B
 Material H65 H65
 Thickness (mm) 0.3 0.3
 Wire Range (mm²) 0.5~1.0 1.0~2.0
 Package Qty 4000 PCS/ROLL 4000 PCS/ROLL
 Basic Spec L: 23.5  W: 2.2  H: 2.0 L: 23.5  W: 2.2  H: 2.0
 Notes 1500-0105 8230-4408
Send email to us

Description

The DJ614-2X0.6 series (P/N: 1500-0105 8230-4408) delivers precision connectivity for critical vehicle subsystems:

  • ‌2.0mm brass alloy contacts‌ with 5μm gold plating over nickel barrier (MIL-DTL-55302 compliant)
  • ‌Parallel dual-spring system‌ ensures <3mΩ contact resistance after 25 mating cycles
  • ‌IP67-rated seal interface‌ prevents moisture ingress in exterior lighting applications
  • ‌Precision crimp wings‌ accommodate 0.35-0.5mm² wire ranges (optimized for AWG 22-20)
  • ‌Color-coded PA66 housings‌ (black/blue) for quick polarity identification during assembly

Key applications: ‌TPMS sensors, LED headlight connectors, and ADAS camera harnesses‌. Compatible with Yazaki 7283-2227 receptacles.

Product Parameters

Attribute
Value
Male/FemaleM
Tab Size2.3mm(090)
Applicable wire size
2.0mm2
Cable overall diameter (mm)2.0-2.7
MaterialsBrass
Surface treatmentTin-plated
Thickness (mm)0.3
(tab thickness)0.64
Contact resistance
Initial
3mΩ Max.
after durability tests
10mΩ Max.
Leak current100μA Max.
Insulation resistance100MΩ Min.

Compatible Parts

Application Sectors

Automobile manufacturing

Industrial equipment

Intelligent robots

New energy field

Applications in automotive manufacturing, industrial equipment, new energy fields, power systems, aerospace, robotics, smart homes, power systems, communication infrastructure, etc.
