DJ615-0.7A (1674742-1)

Short Description

Part No.	DJ615-0.7A
Material	QSn
Thickness (mm)	0.25
Wire Range (mm²)	0.3~0.5
Package Qty	10000 PCS/ROLL
Basic Spec	L: 23.0 W: 0.64 H: 0.64
Notes	1674742-1

Send email to us

Description

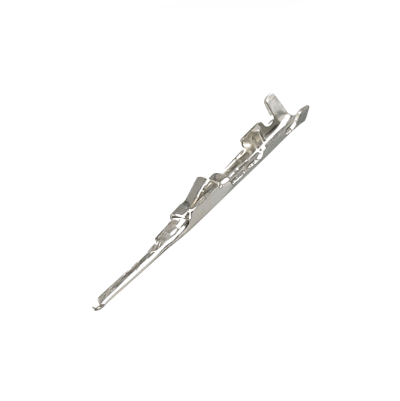

The DJ615-0.7A (1674742-1) is a rugged female tab connector designed for AMP-standard automotive applications:

‌0.7mm thick tin-plated brass‌ ensures 30A current rating and oxidation resistance in engine compartments
‌Positive locking latch‌ provides IP67 sealing when mated with standard AMP male tabs (TE Connectivity 1-480700-0)
‌Pre-insulated crimp barrel‌ accepts 16-14 AWG wires with 50N minimum tensile strength
‌-40°C to +150°C operating range‌ certified for EV charging ports and turbo sensor connections
‌Bulk packaging (100pcs/box)‌ with orientation notches for foolproof assembly

Key applications include ‌heavy-duty truck lighting systems and agricultural equipment control panels‌. Custom laser marking and reel packaging available.

Product Parameters

Attribute	Value
Type	Tab Terminal
Gender	Female
Contact Plating	Tin
Current Rating	4A
Mounting Type	Wire
Termination Method	Crimp
Maximum Operating Temperature	+105°C
Minimum Operating Temperature	-40°C
Width	0.64mm
