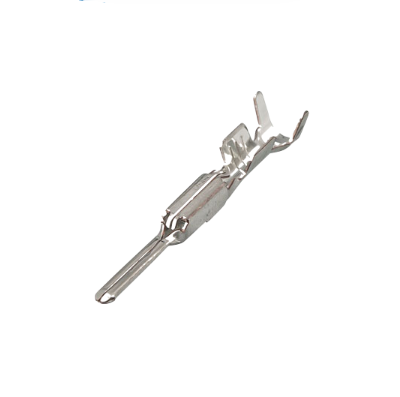

DJ616-1.5X0.8 (7114-4102-02 7114-4103-02)

Short Description

 Part No. DJ616-1.5X0.8A DJ616-1.5X0.8B
 Material QSn QSn
 Thickness (mm) 0.3 0.3
 Wire Range (mm²) 0.35~0.5 0.85~1.25
 Package Qty 3000 PCS/ROLL 3000 PCS/ROLL
 Basic Spec L: 26.6  W: 1.5  H: 0.8  L: 26.6  W: 1.5  H: 0.8
 Notes 7114-4102-02 7114-4103-02
Send email to us

Description

The DJ616-1.5X0.8 series (P/N: 7114-4102-02 & 7114-4103-02) offers reliable power distribution solutions:

  • ‌1.50mm × 0.8mm rectangular tin-plated copper alloy‌ contacts for 12V/48V fuse block applications
  • ‌Dual-cavity crimp structure‌ accommodates 12-14 AWG primary wires + 16-18 AWG sense wires simultaneously
  • ‌Self-aligning lead-in chamfers‌ enable <2N insertion force in AMP-Tyco 282089-series housings
  • ‌85°C temperature rise limit‌ at 30A continuous current (LV214-4 compliant)
  • ‌Tape-and-reel packaging‌ (1,000pcs/reel) with polarity markers for automated assembly

Key applications: ‌BEV junction box current sensing and ICE starter relay circuits‌. Optional nickel underplating available for sulfur-resistant versions.

Product Parameters

Attribute
Value
MaterialCopper Alloy, Brass, Phosphor Bronze, Nickel.
Operating Temperature range-40℃~120℃
Male/FemaleMale/Female
Sealed or UnsealedSealed

Compatible Parts

Application Sectors

Automobile manufacturing

Industrial equipment

Intelligent robots

New energy field

Applications in automotive manufacturing, industrial equipment, new energy fields, power systems, aerospace, robotics, smart homes, power systems, communication infrastructure, etc.
