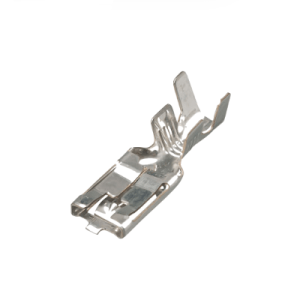

DJ621-A8.0C (1544141-1)

Short Description

Part No.	DJ621-A8.0C
Material	H65
Thickness (mm)	0.45
Wire Range (mm²)	4.0~5.0
Package Qty	1500 PCS/ROLL
Basic Spec	L: 27.0 W: 9.3 H: 2.75
Notes	1544141-1

Send email to us

Description

The DJ621-A8.0C (P/N: 1544141-1) delivers industrial-grade power connectivity:

‌8.0mm tin-plated brass contacts‌ with 60A current rating (USCAR-2 certified)
‌Reinforced crimp wings‌ withstand 30G vibration (per LV214-3)
‌PA6.6 housing‌ with UL94 V-0 flame resistance (-40°C to +150°C)
‌Tool-less insertion design‌ for service-friendly maintenance
‌Cross-compatible with AMP Global Connector System‌

Key applications: ‌Electric vehicle battery packs, alternator main feeds, and commercial vehicle PDUs‌. Complies with ISO 19642 and Ford WSS-M99B222-A1.

Product Parameters

Attribute	Value
Product:	Quick Disconnects
Type:	Tab
Termination Style:	Crimp
Gender:	Female
Insulation:	Not Insulated
Stud / Tab Size:	8 mm
Mounting Style:	Push-In
Packaging:	Cut Tape

Application Sectors

Automobile manufacturing

Industrial equipment

Intelligent robots

New energy field

Applications in automotive manufacturing, industrial equipment, new energy fields, power systems, aerospace, robotics, smart homes, power systems, communication infrastructure, etc.
