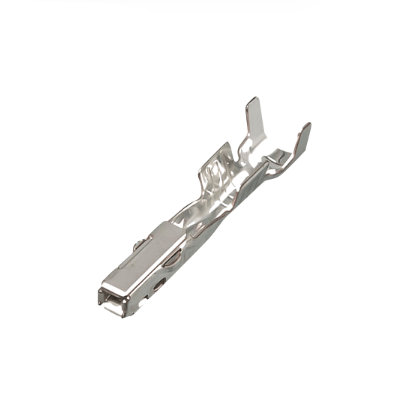

DJ623-1.0 (8100-3067 8100-3068)

Short Description

Part No. DJ623-1.0A DJ623-1.0B
 Material H65 H65
 Thickness (mm) 0.2 0.2
 Wire Range (mm²) 0.3~0.5 0.75~1.25
 Package Qty 6000 PCS/ROLL 6000 PCS/ROLL
 Basic Spec L: 17.0  W: 2.0  H: 2.2  L: 17.0  W: 2.0  H: 2.2
 Notes 8100-3067 8100-3068
Send email to us

Description

The DJ623-1.0 series (8100-3067 male / 8100-3068 female) features:

  • ‌1.0mm pitch‌ compatible with JST SH series for compact ECU module interconnections
  • ‌Nickel barrier plating‌ prevents fretting corrosion under 50+ mating cycles (MIL-STD-202H tested)
  • ‌Dual-stage crimp design‌ secures 24-26 AWG wires with 40N pull-out resistance
  • ‌High-temperature PA66 housing‌ withstands 125°C in engine control unit environments
  • ‌Tape-and-reel (5,000pcs) with polarity keys‌ for automated assembly in sensor clusters

Key applications: ‌OBD-II diagnostic ports and hybrid vehicle battery management systems‌. Custom laser-marked part numbers available.

Product Parameters

Attribute
Value
Male/FemaleF
Tab Size1.0mm(040)
SizeM
Applicable wire size
0.75-1.25mm2
MaterialsHeat-resistant copper alloy
Surface treatmentTin-plated
Contact resistance
Initial
5mΩ Max.
after durability tests
10mΩ Max.
Leak current100μA Max.
Insulation resistance100MΩ Min.

Compatible Parts

Application Sectors

Automobile manufacturing

Industrial equipment

Intelligent robots

New energy field

Applications in automotive manufacturing, industrial equipment, new energy fields, power systems, aerospace, robotics, smart homes, power systems, communication infrastructure, etc.
