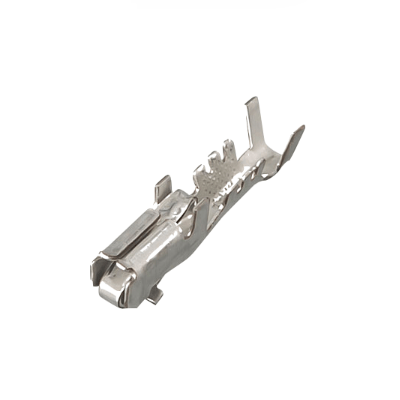

DJT623-1.2A (12089290)

Short Description

Part No. DJ623-1.2A
 Material QSn
 Thickness (mm) 0.25
 Wire Range (mm²) 0.35~0.5
 Package Qty 5000 PCS/ROLL
 Basic Spec L: 14.2  W: 2.6  H: 3.6
 Notes 12089290
Send email to us

Description

The DJ623-1.2A (12089290) series provides robust connectivity for harsh environments:

  • ‌Metri-Pack 150-series compatible‌ 1.2mm female terminals with IP67-rated secondary locking
  • ‌Tin-plated brass alloy‌ resists salt spray (96hrs per ASTM B117) for underhood applications
  • ‌Dual-lock crimp system‌ secures 18-20 AWG wires with 50N tensile strength (SAE/USCAR-25 tested)
  • ‌-40°C to +150°C range‌ certified for turbocharger sensors and EV battery monitoring units
  • ‌Bulk-packed (2,500pcs/box)‌ with orientation ribs for foolproof assembly

Key applications: ‌Off-road vehicle ABS wiring and charging port signal circuits‌. Custom overmolding options available for harness sealing.

Product Parameters

Attribute
Value
Termination StyleCrimp
Contact PlatingTin
Cable Diameter / Insulation Range2.2 mm to 1.3 mm
Contact MaterialTin Brass
Contact TypeTerminal
Current Rating14 A
FamilyMetri-Pack
Locking MechanismTang

Compatible Parts

Application Sectors

Automobile manufacturing

Industrial equipment

Intelligent robots

New energy field

Applications in automotive manufacturing, industrial equipment, new energy fields, power systems, aerospace, robotics, smart homes, power systems, communication infrastructure, etc.
