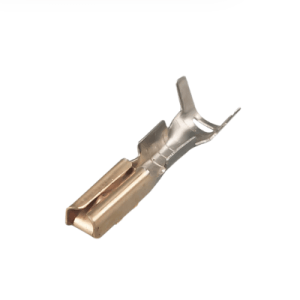

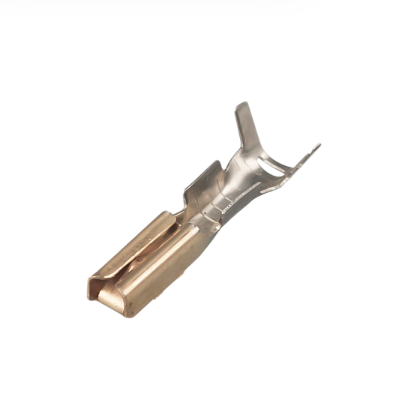

DJ624-2X0.6B/G (ST730502)

Short Description

Part No. DJ624-2X0.6B/G
 Material H65
 Thickness (mm) 0.25
 Wire Range (mm²) 1.0~2.0
 Package Qty 4000 PCS/ROLL
 Basic Spec L: 16.0  W: 3.0  H: 2.5
 Notes ST730502   Gold-plating
Send email to us

Description

The DJ624-2X0.6B/G (P/N: ST730502) provides precision-engineered pre-tinned terminals for automotive electrical systems:

  • ‌22-18 AWG compatibility‌ with dual-crimp design for secure wire retention
  • ‌Pre-tinned copper alloy contacts‌ (3µm thickness) for enhanced oxidation resistance
  • ‌PA46 nylon insulator‌ rated for 125°C continuous operation
  • ‌Vibration-resistant‌ design meets GMW3191 50Hz/50g testing standards
  • ‌Direct replacement for Delphi ST730502‌ in body control modules

Key applications: ‌Instrument cluster wiring, HVAC controls, and lighting circuits‌. Complies with LV214 (German OEM) and SAE/USCAR-20 specifications.

Product Parameters

Attribute
Value
Material TypePhosphor Bronze
Dimensions17.2*3.0*2.5
PlatingPre-Tin
SealedYES
Primary Locking TypeHSG Lance
Mating Tab Width(in)

.090

Terminal TypeStraight-End
Wire RangeAVS 0.3-0.5, CAVS 0.85
Insulation Range1.8-1.9
Terminal Transmits(A)10
Contact Resistance3mΩ MAX

Compatible Parts

Application Sectors

Automobile manufacturing

Industrial equipment

Intelligent robots

New energy field

Applications in automotive manufacturing, industrial equipment, new energy fields, power systems, aerospace, robotics, smart homes, power systems, communication infrastructure, etc.
