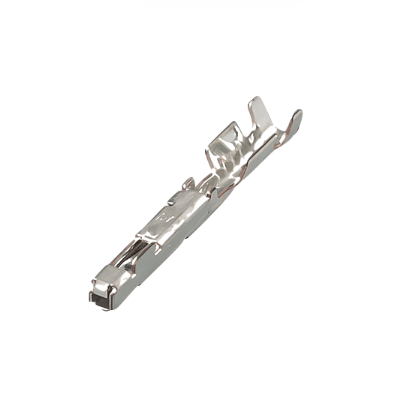

DJ6240-0.7A (M34S75C4F2)

Short Description

Part No.	DJ6240-0.7A
Material	QSn
Thickness (mm)	0.2
Wire Range (mm²)	0.5~0.75
Package Qty	7500 PCS/ROLL
Basic Spec	L: 17.55 W: 1.5 H: 2.0
Notes	M34S75C4F2

Send email to us

Description

The DJ6240-0.7A (M34S75C4F2) is a specialized double-ended female terminal engineered for space-saving wire connections:

‌0.7mm phosphor bronze core‌ with selective gold plating (0.76μm) ensures <15mΩ contact resistance
‌Dual crimp zones‌ accommodate 20-22 AWG wires with 360° insulation grip (DIN 46234 compliant)
‌Stackable design‌ enables parallel circuit branching in LED light bars and dashboard backlighting
‌Vibration-resistant dimple structure‌ maintains contact through 10G acceleration (SAE J1455 tested)
‌Tape-and-reel packaging‌ (3,000pcs/reel) with anti-tangle orientation for automated processing

Ideal for ‌automotive ambient lighting harnesses and RV awning control systems‌. Customizable with color-coded PVC sleeves and RoHS3.0-compliant variants.

Product Parameters

Attribute	Value
Gender	Female
Minimum Wire Size mm²	0.5mm²
Termination Method	Crimp
Maximum Wire Size mm²	0.75mm²
Contact Plating	Tin
Maximum Contact Resistance	5mΩ
Minimum Operating Temperature	-40°C
Maximum Operating Temperature	+85°C
