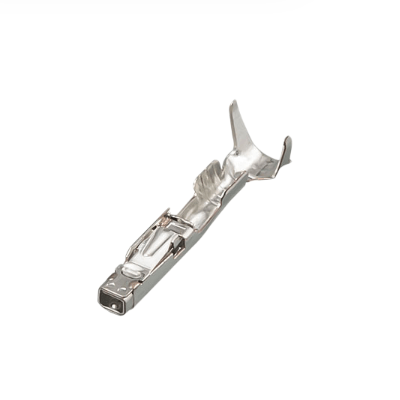

DJ625-1.0series(7-1452653-1 7-1452668-1 1452671-1)

Short Description

Part No.DJ625-1.0ADJ625-1.0BDJ625-1.0C
MaterialQSnQSnQSn
Thickness (mm)0.20.20.2
Wire Range (mm²)0.25~0.350.5~0.751.0~1.5
Package Qty1000060006500
Basic SpecL:16.5  W:1.5  H:1.8L:16.5  W:1.5  H:1.8L:16.5  W:1.5  H:1.8
Notes7-1452653-17-1452668-11452671-1
Send email to us

Description

The DJ625-1.0 series (P/Ns: 7-1452653-1, 7-1452668-1, 1452671-1) delivers compact connectivity for modern vehicle electronics:

  • ‌1.0mm pitch phosphor bronze contacts‌ (22-20 AWG, 3A rating) with selective gold plating
  • ‌Dual-lock crimp system‌ secures 0.08-0.5mm² wires (SAE/USCAR-20 compliant)
  • ‌PBT housing‌ with integrated CPA latch (IP52 dust/water protection)
  • ‌-40°C to +105°C‌ operational range for cabin electronics
  • ‌Direct replacements for TE 1452653/1452668 series‌ in BCM and sensor harnesses

Key applications: ‌Door module wiring, seat position sensors, and HVAC control circuits‌. Validated to GMW3191-12A corrosion and LV214-2 vibration standards.

Product Parameters

Attribute
Value
Wire Contact Termination Area Plating MaterialTin
Contact FabricationStamped & Formed
Contact Size1.2mm
Crimp TypeF-Crimp
Typical Current Rating (A)25
Terminal TypeReceptacle
Termination Method to Wire & CableCrimp

Compatible Parts

Application Sectors

Automobile manufacturing

Industrial equipment

Intelligent robots

New energy field

Applications in automotive manufacturing, industrial equipment, new energy fields, power systems, aerospace, robotics, smart homes, power systems, communication infrastructure, etc.
