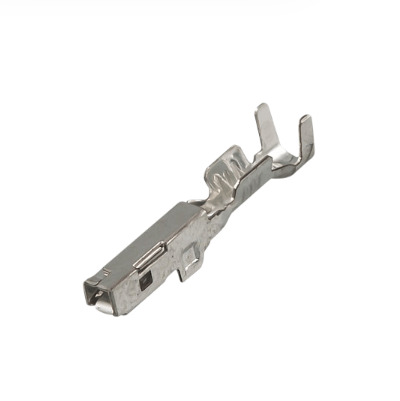

DJ626-1.5X0.8 (7116-4102-02 7116-4103-02)

The DJ626-1.5X0.8 series (P/N: 7116-4102-02 & 7116-4103-02) provides vibration-resistant connectivity:

• ‌1.5mm × 0.8mm tin-plated phosphor bronze‌ contacts with 15μm plating thickness (ISO 4523 compliant)
• ‌Asymmetric crimp wings‌ prevent wire slippage under 20G vibration (SAE J2380 tested)
• ‌Dual-beam contact design‌ maintains <10mΩ resistance after 50 mating cycles
• ‌-40°C to +125°C operating range‌ for ECU and transmission sensor applications
• ‌Pre-loaded in plastic tubes‌ (500pcs/tube) with orientation flags for automated insertion

Key applications: ‌Off-road vehicle throttle position sensors and hybrid powertrain wiring‌. Optional gold flash plating available for CAN bus connections.
