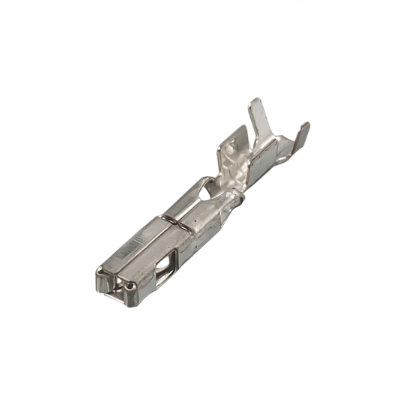

DJ627-1.5 (211CC2S1160P 211CC2S2160P)

Short Description

Part No. DJ627-1.5A DJ627-1.5B
 Material QSn QSn
 Thickness (mm) 0.3 0.3
 Wire Range (mm²) 0.35~0.7 1.35~2.0
 Package Qty 3000 PCS/ROLL 3000 PCS/ROLL
 Basic Spec L: 19.9  W: 3.4  H: 2.6  L: 19.9  W: 3.4  H: 2.6
 Notes 211CC2S1160P 211CC2S2160P
Send email to us

Description

The DJ627-1.5 series (P/Ns: 211CC2S1160P, 211CC2S2160P) delivers reliable female terminals for critical automotive connections:

  • ‌1.5mm pitch tin-plated brass contacts‌ (16-14 AWG, 5A current rating)
  • ‌Self-retaining lance design‌ ensures 50+ mating cycles (exceeds USCAR-2)
  • ‌PA66 housing‌ with CPA secondary lock (IP40 protection)
  • ‌-40°C to +120°C‌ operating range for body control modules
  • ‌Direct replacement for Yazaki 211CC2S series‌ in lighting and door harnesses

Key applications: ‌Headlight connectors, power window switches, and dashboard wiring‌. Complies with LV214-2 vibration and ISO 9227 salt spray standards.

Product Parameters

Attribute
Value
Receptacle (Female)
Cable Mount / Free Hanging
Crimp
Tin
SICMA 1.5
Reel
Cut Tape

Compatible Parts

Application Sectors

Automobile manufacturing

Industrial equipment

Intelligent robots

New energy field

Applications in automotive manufacturing, industrial equipment, new energy fields, power systems, aerospace, robotics, smart homes, power systems, communication infrastructure, etc.
