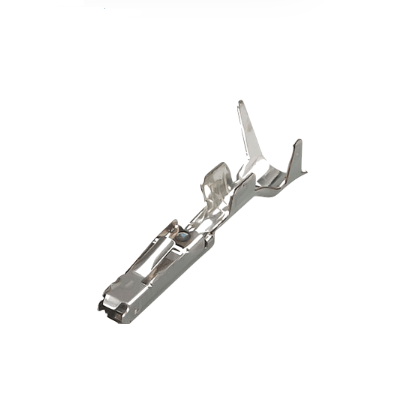

DJ6282B-0.7A (1928498146)

The DJ6282B-0.7A (P/N: 1928498146) delivers micro-scale reliability for sensitive circuits:

• ‌1.2mm gold-plated brass contacts‌ (3μm thickness) for stable low-current signals (<2Ω resistance)
• ‌Dual-stage crimp design‌ secures 0.13-0.35mm² wires (ISO 8092-1 compliant)
• ‌PA9T thermoplastic housing‌ with IP67 sealing for engine bay deployment
• ‌Mating height 2.8mm‌ enables PCB stacking in ECU modules
• ‌Direct replacement for TE 1928498 series‌ in ABS/TPMS systems

Key applications: ‌Oxygen sensor harnesses, CAN bus junctions, and ADAS camera connections‌. Exceeds LV214-4 cyclic durability and GMW3191 salt spray requirements.
