您现在的位置： / / / / Customized DJ629-2.2X0.6A (MT095-63080) 0.3 mm Male Terminal

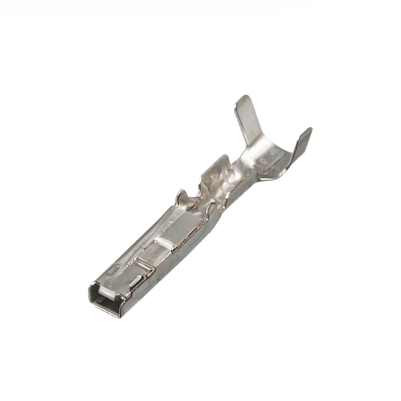

DJ629-2.2X0.6A (MT095-63080)

Short Description

 Part No. DJ618W-2.2X0.6A
 Material H65
 Thickness (mm) 0.3
 Wire Range (mm²) 0.3~0.5
 Package Qty 3000 PCS/ROLL
 Basic Spec L: 25.8  W: 2.3  H: 0.64
 Notes MT091-63080
Send email to us

Description

The DJ629-2.2X0.6A (P/N: MT095-63080) 0.3mm male terminal offers:

  • ‌Precision 0.3mm thickness tin-plated brass‌ for space-constrained 22-18 AWG applications
  • ‌2.2mm pitch design‌ compatible with standard automotive connector housings
  • ‌High-cycle durability‌ (50+ mating cycles) meeting USCAR-2 requirements
  • ‌Direct replacement for Sumitomo MT095-63080‌ in BCM and infotainment systems
  • ‌-40°C to +105°C operating range‌ with ISO 9227 corrosion resistance

Ideal for: ‌Body control modules, dashboard clusters and compact sensor interfaces‌. Complies with JASO D609 and LV214 standards.

Product Parameters

Attribute
Value
Minimum Order Qty:1 piece
Product Family: 2.3 Series
Wire Size Metric:0.3 – 0.5 mm²
Wire Size AWG: 22 AWG, 20 AWG
Sealed / Unsealed:Sealed
Gender: Female
Material:Copper Alloy
Plating:Tin
Dimensions: L : 21.1 mm / W: 3.0 mm / H: 2.2 mm / E: 10.2 mm
Compliance:RoHS, REACH

Compatible Parts

Application Sectors

Automobile manufacturing

Industrial equipment

Intelligent robots

New energy field

Applications in automotive manufacturing, industrial equipment, new energy fields, power systems, aerospace, robotics, smart homes, power systems, communication infrastructure, etc.
