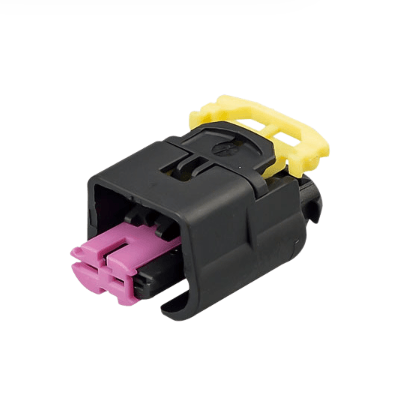

DJ70215-0.7-21 (1928405091)

Short Description

 TypeDJ7011-1.5-11
 Pin1
 MaterialPA66
 ColourBlack
 Applicable TerminalT611-1.5×0.8
 Applicable Wire SealWS-GC-019
 Notes282103-1
Send email to us

Description

The ‌DJ70215-0.7-21‌ (TE Part# 1928405091) is a ‌2-way female wire-to-device MQS connector‌ designed for robust automotive sensor connections. Key specifications:

  • ‌0.7mm ultra-fine pitch‌ for compact PCB mounting
  • ‌Nylon 6.6 housing‌ with UL94 V-0 flame retardancy
  • ‌IP67/IP6K9K sealing‌ (1m water submersion)
  • ‌-40°C to +125°C operating range‌
  • ‌1.5A current rating‌ per contact
  • ‌Double-lock mechanism‌ (50N mating force)

‌Applications:‌ Ideal for ABS wheel sensors, TPMS modules, and engine control units. Compliant with LV214 and USCAR-2 standards.

Product Parameters

Attribute
Value
Number of Poles:2
Color:Violet
Connector Code:A
Gender:Female
Sealed:Yes
Overall Dimensions:18.75 x 16.8 x 26.8mm
Secondary Locking:Yes
Blade Width:1.2mm
Body Material:PA 66 GF

Compatible Parts

Application Sectors

Automobile manufacturing

Industrial equipment

Intelligent robots

New energy field

Applications in automotive manufacturing, industrial equipment, new energy fields, power systems, aerospace, robotics, smart homes, power systems, communication infrastructure, etc.
