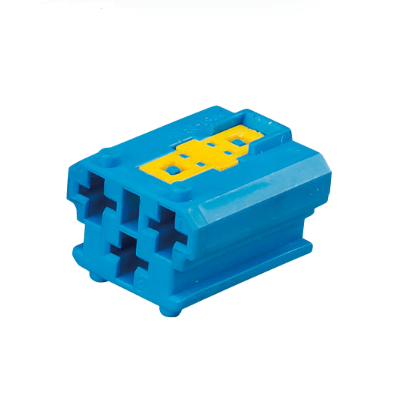

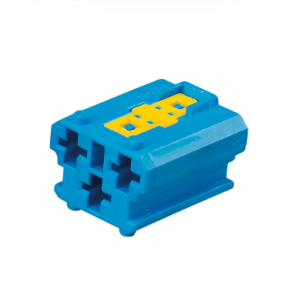

DJ7035-6.3-21 (1544225-2)

The DJ7035-6.3-21 (1544225-2) is a heavy-duty 3-pin male automotive socket engineered for high-current powertrain applications:

• ‌6.3mm pitch‌ supports 40A/pin (8-10 AWG) with tin-plated copper alloy terminals (IEC 60512-100℃ rated)
• ‌PA66-GF25 housing‌ (UL94 V-0, -40°C to +150°C) with UV stabilization for exposed installations
• ‌Dual-stage locking‌ features primary latch + secondary CPA slider for vibration resistance (ISO 16750-3 certified)
• ‌IP6K9K protection‌ against high-pressure washdowns and road salt ingress
• ‌OEM-tooled cavities‌ prevent mis-mating with female counterparts in 48V/400V systems

Key applications: ‌EV battery disconnect units, DC fast charge inlets, and PTC heater circuits‌. Custom options include silver-plated terminals for HV systems and automated continuity testing.
