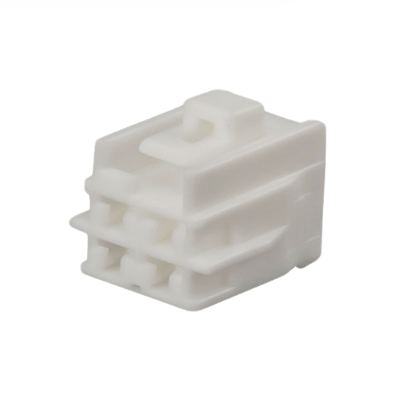

DJ7041Y-4.8-21 (6098-0514)

The DJ7041Y-4.8-21 (6098-0514) is a sealed 3-pin automotive socket designed for demanding powertrain applications:

• ‌4.8mm pitch‌ handles 25A/pin (10-12 AWG) with gold-plated brass terminals (<5mΩ resistance)
• ‌PPS housing‌ (UL94 V-0, -40°C to +160°C) withstands fuel/oil exposure and thermal cycling
• ‌Dual-lock system‌ combines CPA (Connector Position Assurance) and TPA for vibration-proof mating
• ‌IP69K-rated‌ with triple-seal design (housing seal, terminal seal, and secondary lock)
• ‌OEM-compatible‌ with color-coded alignment ribs for foolproof harness assembly

Optimized for ‌48V hybrid systems, electric power steering, and turbo actuator circuits‌. Custom options include HVIL (High Voltage Interlock Loop) integration and automated mating force testing.
