DJ71027-0.64-11 (7282-8856-30)

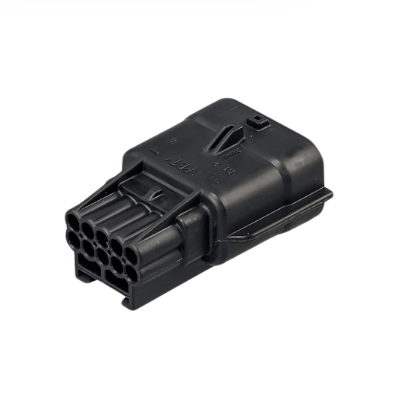

The ‌DJ71027-0.64-11‌ (OEM# 7282-8856-30) is a ‌10-position 0.64mm pitch male connector housing‌ designed for high-density automotive wiring. Key features:

• ‌PBT+30% GF material‌ (UL94 V-0, oil/fuel-resistant, -40°C to +150°C)
• ‌CPA (Connector Position Assurance)‌ secondary lock ensures vibration-proof mating
• ‌Dual-contact beams‌ maintain <8mΩ resistance after 500+ cycles
• ‌Compatible‌ with TE 174517-1 and JST 10-MM-SHF-4.0 series
• ‌IP67 sealing‌ when paired with matching female housings

‌Applications:‌ Battery management systems (BMS), ADAS sensors, and hybrid vehicle power distribution. Meets ISO 19642-4 and USCAR-25 standards.
