DJ8125-0.7-21 (936348-1)

Short Description

 TypeDJ8082-0.7-21
 Pin12
 MaterialPBT
 ColourWhite
 Applicable TerminalT625-0.7
 Applicable Wire Seal/
 Notes936348-1
Send email to us

Description

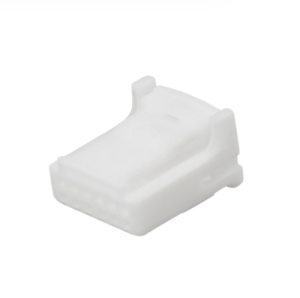

The ‌DJ8125-0.7-21‌ (TE Part# 936348-1) is a ‌12-position MQS female connector housing‌ engineered for advanced automotive electrical systems. Key features:

  • ‌High-temperature PBT material‌ with UL94 V-0 flame resistance
  • ‌Ultra-compact 0.7mm pitch‌ for space-constrained applications
  • ‌Triple-lock retention‌ for maximum vibration resistance
  • ‌IP67/IP6K9K sealing‌ against harsh environments
  • ‌Extended temperature range‌ (-40°C to +150°C)
  • ‌10A current rating‌ per contact

‌Applications:‌ Optimized for EV battery management, ADAS cameras, and infotainment systems. Compliant with USCAR-25 and ISO 19642 standards.

Product Parameters

Attribute
Value
Part Status
Active
Connector Type
Plug
Contact Type
Female Socket
Number of Positions
12
Pitch
0.087″ (2.20mm)
Number of Rows
2
Row Spacing
0.118″ (3.00mm)
Mounting Type
Free Hanging (In-Line)
Contact Termination
Crimp

Compatible Parts

Application Sectors

Automobile manufacturing

Industrial equipment

Intelligent robots

New energy field

Applications in automotive manufacturing, industrial equipment, new energy fields, power systems, aerospace, robotics, smart homes, power systems, communication infrastructure, etc.
