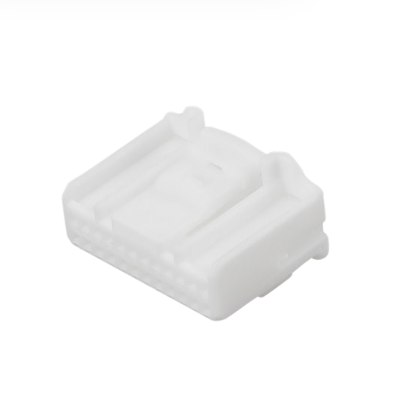

您现在的位置： / / / / Customized DJ8325-0.7-21 (1318747-1) 32 Way 2 Row 2.2mm Pitch Male Connector...

DJ8038-0.7-21 (953697-1)

Short Description

TypeDJ8325-0.7-21
 Pin32
 MaterialPBT
 ColourWhite
 Applicable TerminalT625-0.7
 Applicable Wire Seal/
 Notes1318747-1
Send email to us

Description

The ‌DJ8325-0.7-21‌ (TE Part# 1318747-1) is a ‌32-position MQS male connector housing‌ designed for high-power automotive systems. Key features:

  • ‌Reinforced PA46 housing‌ with UL94 V-0 flame retardancy
  • ‌Dual-row 2.2mm high-current pitch‌ for robust power transmission
  • ‌Triple-lock retention‌ with 50N mating force
  • ‌IP67/IP6K9K sealing‌ for dusty/watery environments
  • ‌-40°C to +170°C extended temperature range‌
  • ‌16A current capacity‌ per contact

‌Applications:‌ Ideal for EV charging systems, heavy-duty power distribution, and industrial automation. Compliant with USCAR-25 and LV214 standards.

Product Parameters

Attribute
Value
Number of Contacts32
Number of Rows2
Pitch2.2mm
GenderMale
SeriesMULTILOCK 025
For Use WithWire-to-Wire Connector
Body OrientationStraight
Length37.4mm
Width15.8mm
Housing MaterialPBT

Compatible Parts

Application Sectors

Automobile manufacturing

Industrial equipment

Intelligent robots

New energy field

Applications in automotive manufacturing, industrial equipment, new energy fields, power systems, aerospace, robotics, smart homes, power systems, communication infrastructure, etc.
