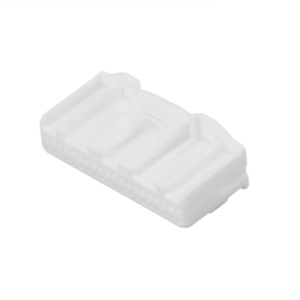

DJ8405-0.7-21 (1318389-1)

Short Description

 TypeDJ8405-0.7-21
 Pin40
 MaterialPBT
 ColourWhite
 Applicable TerminalT625-0.7
 Applicable Wire Seal/
 Notes1318389-1
Send email to us

Description

The DJ8405-0.7-21 (TE Part# 1318389-1) is a 40-position female wire-to-board connector designed for high-density automotive electronics. Key features:

  • 0.7mm ultra-fine pitch for compact PCB layouts
  • PA6T flame-retardant housing with 150°C thermal resistance
  • IP67 sealing against dust/water ingress
  • Snap-fit locking with 25N mating force
  • Gold-plated contacts (0.5μm min) for low insertion loss
  • -40°C to +125°C operational range

Applications: Ideal for ADAS sensors, infotainment systems, and ECU modules. Compliant with USCAR-2 and LV214 standards.

Product Parameters

Attribute
Value
Packaging
Bulk
Part Status
Active
Connector Type
Plug
Contact Type
Female Socket
Number of Positions
40
Pitch
0.087″ (2.20mm)
Number of Rows
2
Row Spacing
0.118″ (3.00mm)
Mounting Type
Free Hanging (In-Line)
Contact Termination
Crimp
Fastening Type
Locking Ramp

Compatible Parts

Application Sectors

Automobile manufacturing

Industrial equipment

Intelligent robots

New energy field

Applications in automotive manufacturing, industrial equipment, new energy fields, power systems, aerospace, robotics, smart homes, power systems, communication infrastructure, etc.
