Part No. | T611-1.5X0.8A | T611-1.5X0.8B |
Material | H65 | H65 |
Thickness (mm) | 0.3 | 0.3 |
Wire Range (mm²) | 0.5~1.5 | 1.5~2.5 |

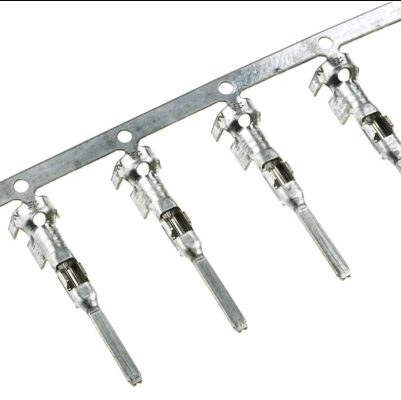

Package Qty | 3000 PCS/ROLL | 3000 PCS/ROLL |
Basic Spec | L: 22.5 W: 1.5 H: 0.8 | L: 22.5 W: 1.5 H: 0.8 |
Notes | 282109-1 | 282465-1 |
Description

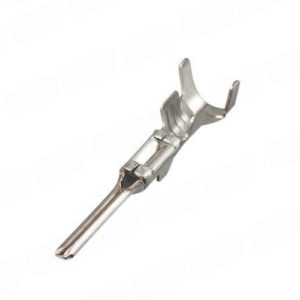

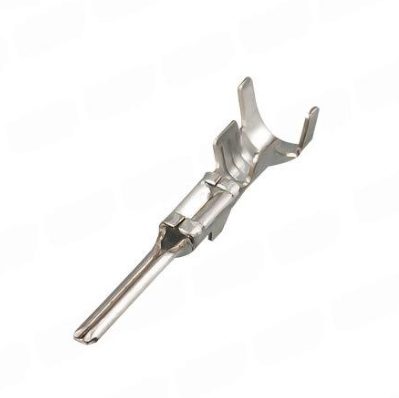

Customized 15AWG male quick-connect terminal (T611-1.5X0.8 ) with insulation support crimp zone, compatible with standard 0.250″ tab receptacles, ideal for fuse boxes and high-current vehicle wiring applications.
Product Parameters
Attribute | Value |
---|---|
Gender | Male |
For Use With | AMP SUPERSEAL 1.5 Connector Housing |
Series | MINI-MIC |
Minimum Wire Size mm² | 0.75mm² |
Termination Method | Crimp |
Maximum Wire Size mm² | 1.5mm² |
Minimum Wire Size AWG | 17AWG |
Contact Plating | Tin |
Maximum Wire Size AWG | 15AWG |
Contact Material | Brass |
Maximum Contact Resistance | 30mΩ |
Minimum Operating Temperature | -40°C |
Maximum Operating Temperature | +125°C |
Compatible Parts
Automobile manufacturing
Industrial equipment
Intelligent robots
New energy field
Applications in automotive manufacturing, industrial equipment, new energy fields, power systems, aerospace, robotics, smart homes, power systems, communication infrastructure, etc.
