T613-2X0.6 (171631-1 171661-1)

Short Description

Part No.	T613-2X0.6A	T613-2X0.6B
Material	H65	H65
Thickness (mm)	0.3	0.3
Wire Range (mm²)	0.2~0.5	0.5~1.25

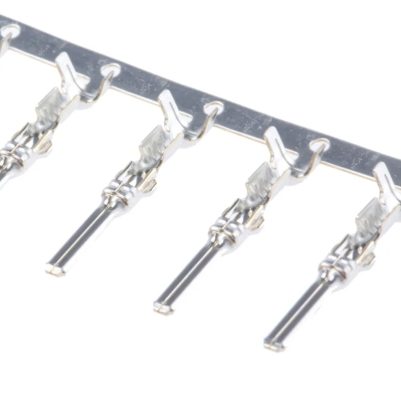

Package Qty	5000 PCS/ROLL	5000 PCS/ROLL
Basic Spec	L: 20.4 W: 1.8 H: 0.6	L: 20.4 W: 1.8 H: 0.6
Notes	171631-1	171661-1

Send email to us

Description

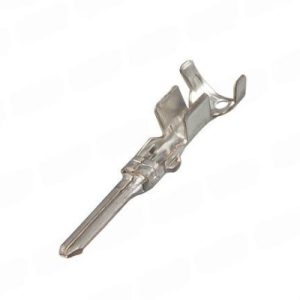

Precision 2.0×0.6mm male quick-connect terminals with dual crimp zones and tin plating, compatible with standard female receptacles for relay/fuse box wiring in harsh environments.

Product Parameters

Attribute	Value
Gender	Male
For Use With	Econoseal J 070 Mk II Connector Housing
Series	Econoseal J 070 Mk II
Minimum Wire Size mm²	0.2mm²
Termination Method	Crimp
Maximum Wire Size mm²	0.5mm²
Minimum Wire Size AWG	24AWG
Contact Plating	Tin
Maximum Wire Size AWG	20AWG
Contact Material	Brass
Minimum Operating Temperature	-30°C
Maximum Operating Temperature	+105°C

Compatible Parts

30.06.2025In2.0 Series pin 标签：Automotive Connectors, Customized Splice Terminal

Customized T623-2X0.6 (171630-1 171662-1) AMP Connectors Terminal

24.06.2025In2.0 Series pin 标签：Customized Splice Terminal, Male, Terminals

Customized T613-2X0.6 (171631-1 171661-1) Male Crimp Terminal

Application Sectors

Automobile manufacturing

Industrial equipment

Intelligent robots

New energy field

Applications in automotive manufacturing, industrial equipment, new energy fields, power systems, aerospace, robotics, smart homes, power systems, communication infrastructure, etc.
