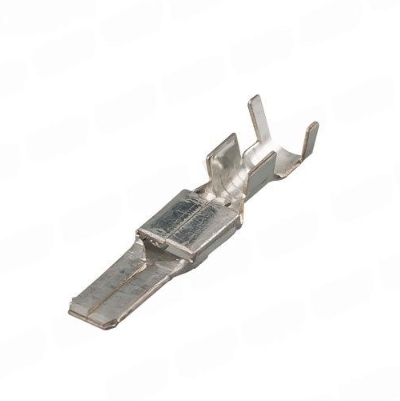

T614-4.8X0.8C (8230-4542)

Short Description

Part No.	T614-4.8X0.8C
Material	H65
Thickness (mm)	0.4
Wire Range (mm²)	2.0~3.0
Package Qty	2000 PCS/ROLL
Basic Spec	L: 26.7 W: 4.8 H: 0.8
Notes	8230-4542

Send email to us

Description

Engineered as a drop-in upgrade, this terminal combines a patented anti-backout latch with a widened 0.8mm² crimp zone to exceed OEM specifications. The nickel barrier layer prevents galvanic corrosion in high-voltage applications, while the chamfered insertion guide ensures compatibility with existing Onvas 8000-series housings for BMS and PDU interfaces.

Product Parameters

Attribute	Value
Sealing	Unsealed
Contact Size	4.8mm (.187)
Wire Size	0.30 – 3.00 mm²
Contact Type	Pin, flat
Termination	Open barrel crimp
Lance Type	Housing Lance
Current Rating	28A

Compatible Parts

18.06.2025In0.6 Series 标签：Automotive connector, MQS

Custom 3 Pin 0.6mm Automotive connector MQS housing

17.06.2025In0.6 Series 标签：Automotive Connectors, MQS

Customized 4-Pin Automotive Connectors MQS Sensing Plugs Cable Harness Connectors

Application Sectors

Automobile manufacturing

Industrial equipment

Intelligent robots

New energy field

Applications in automotive manufacturing, industrial equipment, new energy fields, power systems, aerospace, robotics, smart homes, power systems, communication infrastructure, etc.
