您现在的位置： / / / / Customized DJ621-F2.2X0.6A (7116-4022) Female Terminals

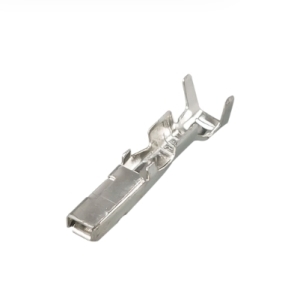

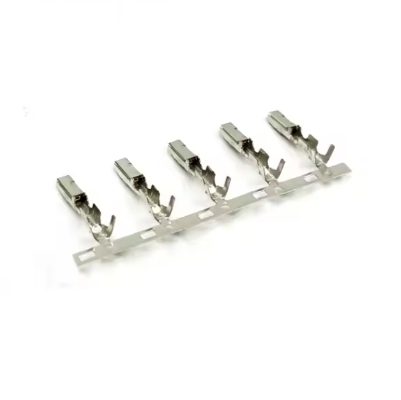

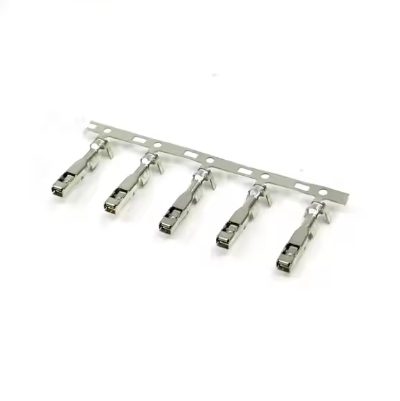

DJ621-F2.2X0.6A (7116-4022)

Short Description

Part No. DJ621-F2.2X0.6A
 Material H65
 Thickness (mm) 0.25
 Wire Range (mm²) 0.5~1.25
 Package Qty 3500 PCS/ROLL
 Basic Spec L: 18.0  W: 3.0  H: 2.8
 Notes 7116-4022
Send email to us

Description

The DJ621-F2.2X0.6A (P/N: 7116-4022) delivers high-performance female terminals for critical automotive connections:

  • ‌2.2mm pitch gold-nickel plated contacts‌ (20-16 AWG, 10A current rating)
  • ‌CPA (Connector Position Assurance) lock‌ for secure mating in high-vibration environments
  • ‌High-temperature LCP housing‌ (UL94 V-0, 150°C rated)
  • ‌Direct replacement for Yazaki 7116-4022‌ in ECU and transmission connectors
  • ‌Compliant with USCAR-2 and LV214‌ for global OEM applications

Key uses: ‌Engine control units, ABS sensors, and hybrid vehicle power systems‌. Features 50+ mating cycles and salt spray resistance per ISO 9227.

Product Parameters

Attribute
Value
Wire Size Metric:0.85 – 1.25 mm²
Wire Size AWG: 18 AWG, 16 AWG
Sealed / Unsealed:Sealed
Gender: Female
Material:Copper Alloy
Plating:Tin

Compatible Parts

Application Sectors

Automobile manufacturing

Industrial equipment

Intelligent robots

New energy field

Applications in automotive manufacturing, industrial equipment, new energy fields, power systems, aerospace, robotics, smart homes, power systems, communication infrastructure, etc.
