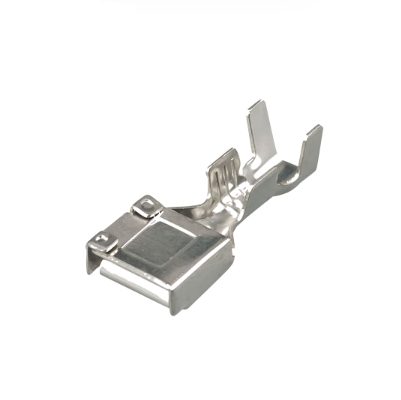

T626-8.0C (8100-0452)

Short Description

Part No.	T626-8.0C
Material	H65
Thickness (mm)	0.4
Wire Range (mm²)	2.0~3.0
Package Qty	1000 PCS/ROLL
Basic Spec	L: 22.4 W: 9.2 H: 5.0
Notes	8100-0452

Send email to us

Description

This terminal ensures <5mΩ contact resistance with 4.0-10.0mm² cables, utilizing a quadruple-crimp design (conductor/insulation/strain relief/shield) for IP69K-rated waterproofing. Complies with LV214-2 (German automotive) and ISO 19642 standards, with integrated CPA lock for hybrid/electric vehicle charge port harness assemblies.

Product Parameters

Attribute	Value
Applicable wire size	2.0-3.0mm²
Cable overall diameter (mm)	2.6-4.1
Materials	Brass
Surface treatment	Tin-plated
Contact resistance	Initial 3mΩ Max. after durability tests 10mΩ Max.
Leak current	100μA Max.
Insulation resistance	100MΩ Min.

Compatible Parts

27.06.2025In8.0 Series 标签：Automotive Connectors, Customized Housings Socket

Customized DJ7028-8-21 (1544263-1) 2 pin auto connector Housing

Application Sectors

Automobile manufacturing

Industrial equipment

Intelligent robots

New energy field

Applications in automotive manufacturing, industrial equipment, new energy fields, power systems, aerospace, robotics, smart homes, power systems, communication infrastructure, etc.
