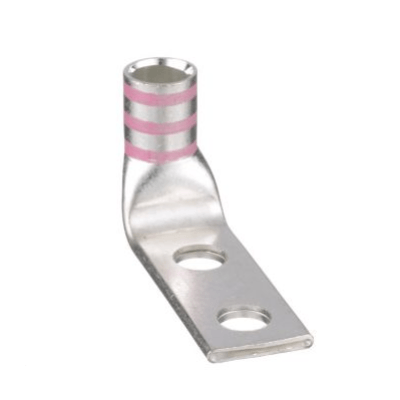

D1/0-1434FW 1/0 AWG Copper 90° Lug, 2 Hole, 1/4″ Stud, 3/4″ Center Spacing (Pink Die)

D1/0-1434FW 90° T2 Copper Compression Lug | 1/0 AWG | 2-Hole 1/4″ Stud | 3/4″ Spacing | Pink

Description

Feature : 90-degree angled design manufactured from high-conductivity T2 copper, featuring dual 1/4″ stud holes with 3/4″ center spacing and pink die insulation
Advantage : Dual-hole mounting provides superior mechanical stability against vibration and torque, while T2 copper ensures maximum electrical conductivity and corrosion resistance
Benefit : Ensures reliable power transmission in demanding applications, reduces maintenance costs, and provides easy circuit identification through distinctive pink coloring

Data Overview

Material: T2 Copper (High Conductivity)
Cable Range: 1/0 AWG
Stud Size: 1/4″ (Dual Holes)
Hole Spacing: 3/4″ Center
Mounting: 2-Hole Pattern
Tongue Angle: 90°
Insulation: Pink Die
Standards: UL 486A, RoHS Compliant
Temperature Rating: -40°C to 125°C

Application Scenarios
Industrial power distribution systems, electrical panels, heavy equipment wiring, renewable energy installations, and applications requiring vibration-resistant, high-current connections.

Send email to us

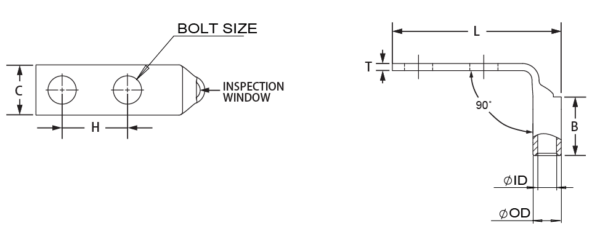

Dimensions

Bolt Size	1/4 in
Hole Spacing(H)	3/4 in
Tang Width (C)	0.75 in
Barrel length (B)	0.88 in
Overall length (L)	2.20 in
Inner diameter (ID)	0.39 in
Outer diameter (OD)	0.52 in

General Specifications

Colour	Black
Material	Copper
Tongue Type	Standard
Tongue Angle	90 degree
Surface	Tin-plated
Inspection Window	With inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage	35KV
Environmental Specifications
Operating Temperature	-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature	-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
Included	Lug
Packaging Quantity and UOM	1 pcs
Certifications
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
