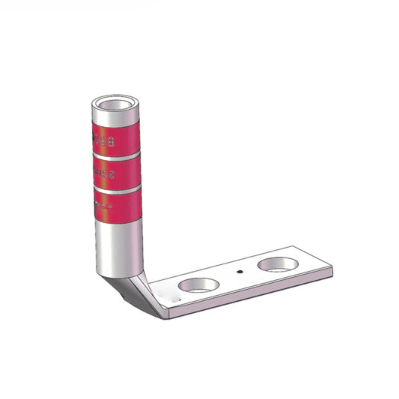

D1/0-1458FW 90° Copper Lug AWG 1/0 two hole 1/4 hole spacing 5/8 pink

Description

Industrial-grade ‌90° offset T2 copper‌ connector featuring:

  • ‌Patent-pending 90° bend design‌ reduces panel depth by 35% compared to straight lugs while handling 250A continuous current
  • ‌Dual 1/4″ mounting holes‌ with 5/8″ (15.88mm) precision spacing for parallel busbar connections
  • ‌Seamless forged T2 copper‌ body achieves 101% IACS conductivity and 600V AC/DC rating (-40°C to 125°C)
  • ‌Pink oxidation-resistant plating‌ with 800V dielectric strength for photovoltaic combiner boxes

‌Certified for‌: Energy storage cabinets, wind turbine converters, and UL 486C Class D high-vibration environments

Send email to us

Dimensions

Bolt Size1/4 in
Hole Spacing (H)5/8  in
Tang Width (C)0.75 in
Barrel length (B)0.88 in
Overall length (L)2.08 in
Inner diameter (ID)0.39 in
Outer diameter (OD)0.52 in

General Specifications

Colour CodePink
MaterialCopper
Tongue TypeStandard
Tongue Angle90 degree
SurfaceTin-plated
Inspection WindowWith inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage35KV
Environmental Specifications
Operating Temperature-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
IncludedLug
Packaging Quantity and UOM1 pcs
Certifications
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
