D1/0-1458HW AWG 2/0# 45°Degree Color Coded Angle Copper Lugs two hole1/4 hole spacing5/8

Description

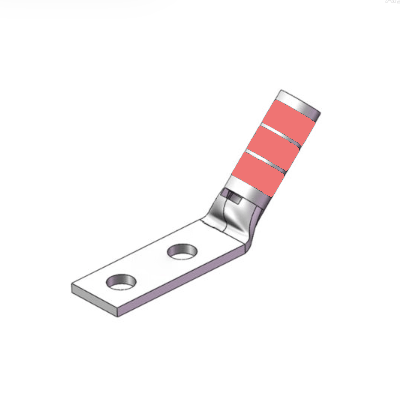

The D1/0-1458HW is a 45° angled copper lug designed for reliable wire termination in electrical systems.

Crafted with high-conductivity T2 red copper (ensuring low contact resistance, strong corrosion resistance, and stable current transmission), it fits AWG 2/0# wires, features two 1/4″ holes with 5/8″ spacing for stable mounting, and includes color coding for quick size identification.

Ideal for automotive, industrial, and heavy-duty electrical setups needing durable, precision-driven angle connections.

Send email to us

Dimensions

Bolt Size	1/4 in
Hole Spacing(H)	5/8 in
Tang Width (C)	0.75 in
Barrel length (B)	0.88 in
Overall length (L)	2.26 in
Inner diameter (ID)	0.39 in
Outer diameter (OD)	0.52 in

General Specifications

Colour	Pink
Material	Copper
Tongue Type	Standard
Tongue Angle	45 degree
Surface	Tin-plated
Inspection Window	With inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage	35KV
Environmental Specifications
Operating Temperature	-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature	-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
Included	Lug
Packaging Quantity and UOM	1 pcs
Certifications
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
