您现在的位置： / / / / / D1/0-3801HW Heavy Duty 1/0 AWG 45 Degree Angled Ring Terminal – 2...

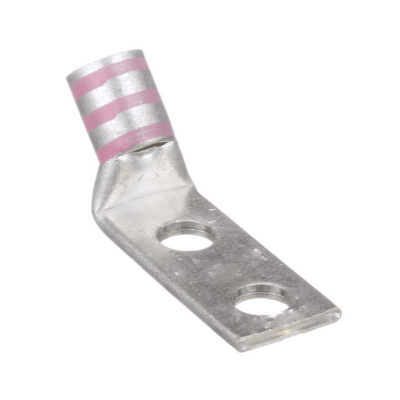

Heavy duty 1/0 AWG 45-degree angled ring terminal made from T2 copper with two mounting holes, 3/8" bolt hole, and pink insulation.Heavy duty 1/0 AWG 45-degree angled ring terminal made from T2 copper with two mounting holes, 3/8″ bolt hole, and pink insulation.
Heavy duty 1/0 AWG 45-degree angled ring terminal made from T2 copper with two mounting holes, 3/8" bolt hole, and pink insulation.
Heavy duty 1/0 AWG 45-degree angled ring terminal made from T2 copper with two mounting holes, 3/8" bolt hole, and pink insulation.

Heavy Duty 1/0 AWG 45° T2 Copper Ring Terminal | 2-Hole Mounting | 3/8″ Bolt Hole | Pink Color Code

Description

  • Feature  45-degree angled design manufactured from high-conductivity T2 copper with dual-hole mounting pattern, 3/8″ bolt hole, and pink insulation

  • Advantage : Provides superior mechanical stability against rotation and vibration while ensuring optimal electrical performance in high-current applications

  • Benefit : Enhances connection reliability in demanding environments, reduces maintenance requirements, and provides visual circuit identification through color coding

Data Overview

  • Material: T2 Copper

  • Cable Range: 1/0 AWG

  • Bolt Hole: 3/8″

  • Mounting: 2-Hole Pattern

  • Angle: 45°

  • Insulation: Pink

  • Standards: UL 486A, RoHS

  • Temperature Rating: -40°C to 125°C

Application Scenarios
Heavy equipment wiring, renewable energy systems, industrial power distribution, marine electrical installations, and other high-vibration applications requiring secure angled connections.

Send email to us

Dimensions

Bolt Size3/8 in
Hole Spacing(H)1 in
Tang Width (C)0.75 in
Barrel length (B)0.88 in
Overall length (L)2.72 in
Inner diameter (ID)0.39 in
Outer diameter (OD)0.52 in

General Specifications

ColourPink
MaterialCopper
Tongue TypeStandard
Tongue Angle45 degree
SurfaceTin-plated
Inspection WindowWith inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage35KV
Environmental Specifications
Operating Temperature-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
IncludedLug
Packaging Quantity and UOM1 pcs
Certifications
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
