D1-1458FW 90° Copper Lugs AWG1# two hole 1/4 hole spacing 5/8 Green Color Coded lugs

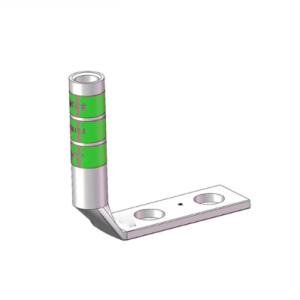

D1-1458HW 90° Copper Lugs two hole 1/4 hole spacing 5/8 AWG1# Green Color Coded

Description

The ‌D1-1458HW‌ 90° lug delivers:

‌Premium T2 copper‌ (99.99% purity) with 58.0MS/m conductivity, ensuring minimal energy loss in high-current circuits
‌AWG1# compatibility‌ for heavy-duty power distribution in industrial and renewable energy systems
‌Two 1/4″-spaced holes‌ for secure mechanical fixation, reducing vibration-induced loosening
‌Green color-coded‌ for quick identification in complex wiring environments
‌Tin-plated surface‌ to resist oxidation and hydrogen embrittlement in -55°C to 150°C environments

‌Key Advantages:‌

‌Material Integrity‌: Annealed T2 copper resists thermal fatigue and maintains structural stability under cyclic loads
‌Certifications‌: Complies with UL 486A and IEC 61238-1 standards for power transmission reliability
‌Installation Efficiency‌: Precision-engineered holes ensure uniform compression with standard crimping tools

Send email to us

Dimensions

Bolt Size	1/4 in
Hole Spacing (H)	3/4 in
Tang Width (C)	0.68 in
Barrel length (B)	0.88 in
Overall length (L)	2.12 in
Inner diameter (ID)	0.36 in
Outer diameter (OD)	0.46 in

General Specifications

Colour	Green
Material	Copper
Tongue Type	Standard
Tongue Angle	90 Angle
Surface	Tin-plated
Inspection Window	With inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage	35KV
Environmental Specifications
Operating Temperature	-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature	-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
Included	Lug
Packaging Quantity and UOM	1 pcs
Certifications
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
