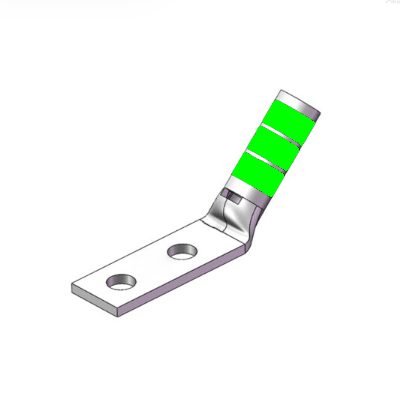

D1-1458HW 45°Copper Lug AWG1# two hole 1/4 hole spacing 5/8 Green Color Coded Lugs

Description

The ‌D1-1458HW‌ angled terminal lug delivers:

  • ‌Premium T2 copper‌ (99.9% purity) with 58.0MS/m conductivity, outperforming standard alloys in energy transfer efficiency
  • ‌1AWG compatibility‌ and 45° offset design for streamlined cable routing in tight panels
  • ‌Dual 5/8″ holes‌ with 1/4″ spacing, compatible with DIN/ANSI bolt standards
  • ‌Green color coding‌ for instant circuit identification in complex installations

‌Key Features:‌

  • ‌Hydrogen-resistant‌ T2 material prevents embrittlement in high-temperature environments
  • ‌Cold-forged construction‌ ensures 20% higher tensile strength vs. stamped alternatives
  • ‌Applications‌: Renewable energy systems, marine switchboards, and heavy machinery wiring
Send email to us

Dimensions

Bolt Size1/4 in
Hole Spacing(H)5/8 in
Tang Width (C)0.68 in
Barrel length (B)0.88 in
Overall length (L)2.12 in
Inner diameter (ID)0.36 in
Outer diameter (OD)0.46 in

General Specifications

ColourGreen
MaterialCopper
Tongue TypeStandard
Tongue Angle45 degree
SurfaceTin-plated
Inspection WindowWith inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage35KV
Environmental Specifications
Operating Temperature-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
IncludedLug
Packaging Quantity and UOM1 pcs
Certifications
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
