D1410-1058HW 45°Copper Lug AWG 14-10# two hole #10 hole spacing 5/8 Yellow Color-Coded

Description

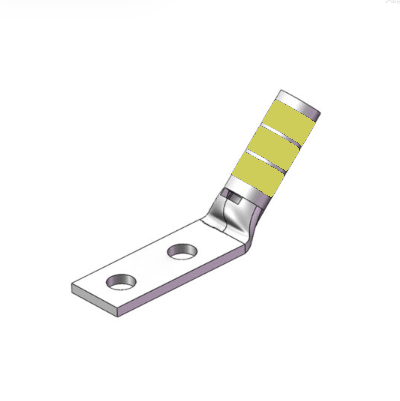

The D1410-1058HW is a 45° angled copper lug designed for reliable wire termination in electrical systems.

Made with high-conductivity T2 red copper (ensuring low contact resistance, strong corrosion resistance, and long-term performance), it fits AWG 14-10# wires, features two #10-sized holes with 5/8″ spacing for stable mounting, and has yellow color coding for quick identification.

Ideal for automotive, industrial, and residential electrical setups needing durable, precision-driven connections.

Send email to us

Dimensions

Bolt Size	#10 in
Hole Spacing(H)	5/8 in
Tang Width (C)	0.36 in
Barrel length (B)	0.38 in
Overall length (L)	1.59 in
Inner diameter (ID)	0.13 in
Outer diameter (OD)	0.22 in

General Specifications

Colour	Yellow
Material	Copper
Tongue Type	Standard
Tongue Angle	45 degree
Surface	Tin-plated
Inspection Window	With inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage	35KV
Environmental Specifications
Operating Temperature	-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature	-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
Included	Lug
Packaging Quantity and UOM	1 pcs
Certifications
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
