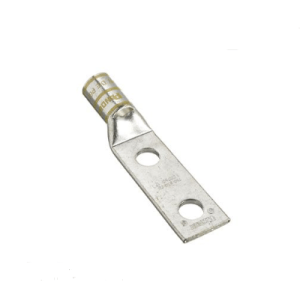

D1410-1458W 1/4 Stud, 5/8″ Spacing 14-10AWG Two-Hole Compression Lug

Description

  • ‌Ultra-Conductive Core‌: Precision-engineered T2 oxygen-free copper (C11000) with 100% IACS conductivity, surpassing ASTM B187 standards for high-current applications.
  • ‌Adaptive Wire Range‌: Universal 14-10AWG (2.08-5.26mm²) compatibility reduces inventory needs for electrical contractors and OEMs.
  • ‌Anti-Vibration Design‌: Dual 1/4″-20 threaded studs with 5/8″ center spacing provide 360° rotational stability in heavy machinery and renewable energy systems.
  • ‌Tool-Ready Construction‌: Forged barrel accepts hydraulic crimping (8-10mm dies) per UL 486A, eliminating thermal stress from soldering.
Send email to us

Dimensions

Bolt Size1/4 in
Hole Spacing(H)5/8 in
Tang Width (C)0.41 in
Barrel length (B)0.38 in
Overall length (L)1.84 in
Inner diameter (ID)0.13 in
Outer diameter (OD)0.22 in

General Specifications

ColourYellow
MaterialCopper
Tongue TypeStandard
Tongue AngleStraight
SurfaceTin-plated
Inspection WindowWith inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage35KV
Environmental Specifications
Operating Temperature-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
IncludedLug
Packaging Quantity and UOM1 pcs
Certifications
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
