You are here: / / / / / D1410-3801FW Universal 14-10 AWG Copper Compression Lug, 90°, 2 Hole, ...

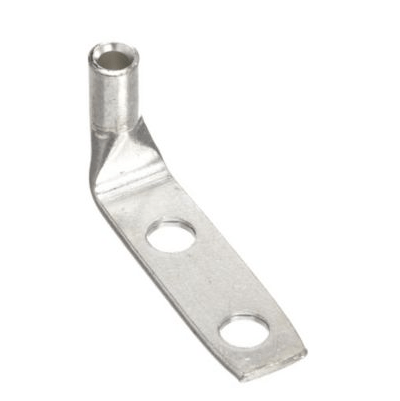

D1410-3801FW universal 90-degree compression lug for 14-10 AWG cables, made from T2 copper with two 3/8" stud holes at 1-inch spacing.D1410-3801FW universal 90-degree compression lug for 14-10 AWG cables, made from T2 copper with two 3/8″ stud holes at 1-inch spacing.
D1410-3801FW universal 90-degree compression lug for 14-10 AWG cables, made from T2 copper with two 3/8" stud holes at 1-inch spacing.
D1410-3801FW universal 90-degree compression lug for 14-10 AWG cables, made from T2 copper with two 3/8" stud holes at 1-inch spacing.

D1410-3801FW Universal 90° T2 Copper Compression Lug | 14-10 AWG Range | 2-Hole 3/8″ Stud | 1″ Spacing

Description

  • Feature : 90-degree universal design manufactured from high-conductivity T2 copper, compatible with 14-10 AWG wire range, featuring dual 3/8″ stud holes with 1-inch center spacing

  • Advantage : Wide wire range compatibility provides installation flexibility, while dual-hole mounting ensures superior mechanical stability and vibration resistance in angled applications

  • Benefit : Reduces inventory requirements by covering multiple wire sizes, ensures reliable connections in space-constrained installations, and minimizes maintenance costs

Data Overview

  • Material: T2 Copper (High Conductivity)

  • Wire Range: 14-10 AWG

  • Stud Size: 3/8″ (Dual Holes)

  • Hole Spacing: 1 Inch Center

  • Mounting: 2-Hole Pattern

  • Tongue Angle: 90°

  • Type: Universal Compression Lug

  • Standards: UL 486A, RoHS Compliant

  • Temperature Rating: -40°C to 125°C

Application Scenarios
Industrial control panels, electrical cabinets, power distribution systems, and applications requiring versatile, space-efficient connections for multiple wire sizes.

Send email to us

Dimensions

Bolt Size3/8 in
Hole Spacing(H)1.00 in
Tang Width (C)0.56 in
Barrel length (B)0.38 in
Overall length (L)2.16 in
Inner diameter (ID)0.13 in
Outer diameter (OD)0.22 in

General Specifications

ColourYellow
MaterialCopper
Tongue TypeStandard
Tongue Angle90 degree
SurfaceTin-plated
Inspection WindowWith inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage35KV
Environmental Specifications
Operating Temperature-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
IncludedLug
Packaging Quantity and UOM1 pcs
Certifications
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
