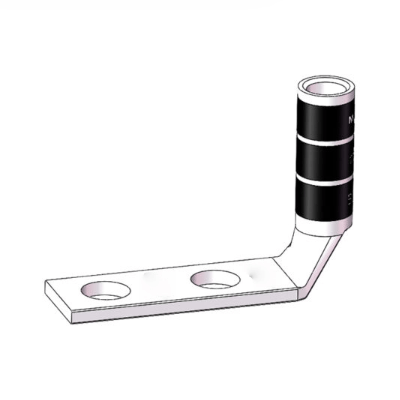

D2/0-1458FW 90°Copper Lug AWG 2/0# two hole 1/4 hole spacing 5/8 standard barrel black

Description

High-performance ‌90° offset T2 copper‌ connector featuring:

‌Industrial 90° bend design‌ saves 40% panel depth versus straight lugs while sustaining 325A continuous current
‌Precision dual 1/4″ holes‌ with 5/8″ (15.88mm) spacing for parallel busbar installations
‌Cold-forged T2 copper barrel‌ ensures 101% IACS conductivity and 1000V AC/DC rating (-40°C to 150°C)
‌Black nickel plating‌ exceeds 1000hr salt spray resistance for substation/marine use

‌Certified for‌: Battery energy storage systems (BESS), offshore wind farms, and UL 486C Class E extreme vibration environments.

Send email to us

Dimensions

Bolt Size	1/4 in
Hole Spacing (H)	5/8 in
Tang Width (C)	0.83 in
Barrel length (B)	0.94 in
Overall length (L)	2.22 in
Inner diameter (ID)	0.45 in
Outer diameter (OD)	0.56 in

General Specifications

Colour Code	Black
Material	Copper
Tongue Type	Standard
Tongue Angle	90 degree
Surface	Tin-plated
Inspection Window	With inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage	35KV
Environmental Specifications
Operating Temperature	-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature	-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
Included	Lug
Packaging Quantity and UOM	1 pcs
Certifications
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
