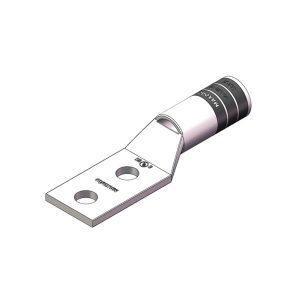

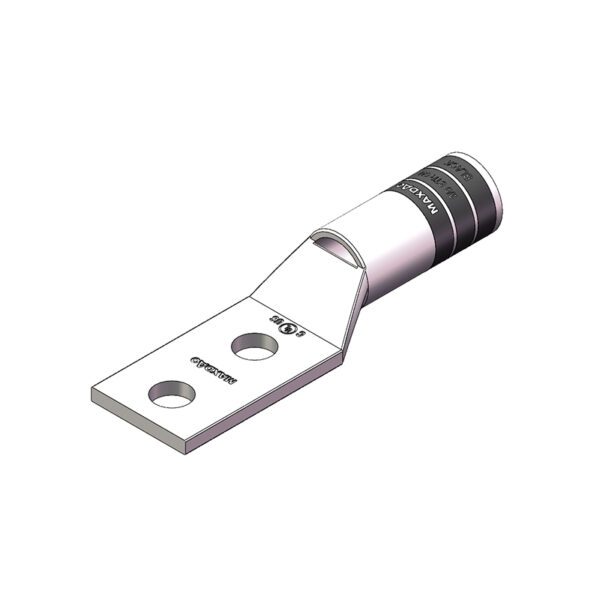

D2/0-1458W ground Lug AWG2/0# two hole 1/4,hole spacing 5/8 standard barrel with inspection window black

Description

The ‌D2/0-1458W‌ grounding lug delivers ‌premium T2 electrolytic copper‌ (99.9% conductivity) with:

  • ‌Dual 1/4″ (6.35mm) holes‌ (5/8″ spacing) for versatile mounting
  • ‌Black printed markings with inspection window‌ for quick identification
  • ‌Corrosion-resistant finishes‌:
    • Standard black polymer coating (safety color-coding)
    • Optional nickel plating (5-10μm thickness)
  • ‌Cold-forged AWG2/0 (67.4mm²) terminal‌ (meets UL486A/B)
  • ‌-60°C to +200°C operational range‌

‌Applications:‌ Ideal for industrial equipment, solar farms, and data center grounding. Compliant with IEEE 80, NEC 250.84.

Send email to us

Dimensions

Bolt Size1/4 in
Hole Spacing (H)5/8 in
Tang Width (C)0.83 in
Barrel length (B)0.95 in
Overall length (L)2.64in
Inner diameter (ID)0.45 in
Outer diameter (OD)0.56 in

General Specifications

Colour CodeBlack
MaterialCopper
Tongue TypeStandard
Tongue AngleStraight
SurfaceTin-plated
Inspection WindowWith inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage35KV
Environmental Specifications
Operating Temperature-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
IncludedLug
Packaging Quantity and UOM1 pcs
Certifications
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
