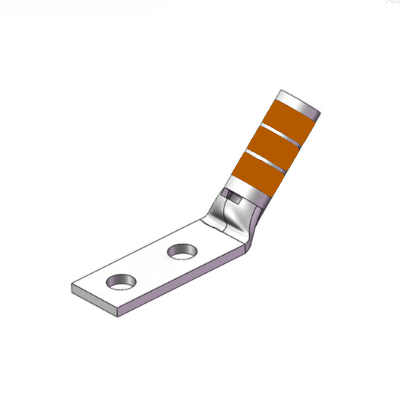

D2-1434HW 45°Copper Lug AWG2# two hole 1/4 hole spacing 3/4 Barrel Color Coded

Description

The ‌D2-1434HW‌ angled terminal features:

  • ‌Ultra-pure T2 copper core‌ (99.9% purity) delivering 58.0MS/m conductivity, ideal for high-current circuits
  • ‌2AWG compatibility‌ with 45° offset design for space-saving panel installations
  • ‌Dual 3/4″ holes‌ with 1/4″ center spacing, compliant with ANSI/DIN bolt standards
  • ‌Barrel color coding‌ for rapid identification in complex wiring systems

‌Performance Advantages:‌

  1. ‌Material Science‌: Annealed T2 copper resists hydrogen embrittlement in >150°C environments
  2. ‌Structural Integrity‌: Cold-forged barrel provides 25% higher crush resistance vs. stamped alternatives
  3. ‌Certifications‌: Meets UL 486A and IEC 61238-1 standards for power transmission reliability
Send email to us

Dimensions

Bolt Size1/4in
Hole Spacing (H)3/4 in
Tang Width (C)0.60 in
Barrel length (B)0.88 in
Overall length (L)2.24 in
Inner diameter (ID)0.31 in
Outer diameter(OD)0.42 in

General Specifications

ColourBarrel
MaterialCopper
Tongue TypeStandard
Tongue Angle45 degree
SurfaceTin-plated
Inspection WindowWith inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage35KV
Environmental Specifications
Operating Temperature-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
IncludedLug
Packaging Quantity and UOM1 pcs
Certifications
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
