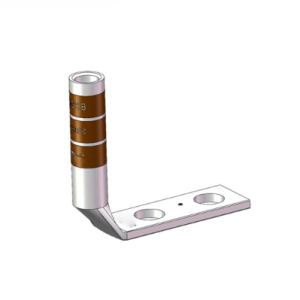

D2-1458FW 90°Copper Lugs AWG 2# two hole 1/4 hole spacing 5/8 long barrel brown

Description

High-performance ‌T2 copper‌ terminal featuring:

‌90° right-angle design‌ with 1/4″ hole spacing and 5/8″ barrel length for compact electrical panel installations
‌Cold-forged seamless barrel‌ (99.9% purity) ensures 100% IACS conductivity for minimal energy loss
‌Brown-coated surface‌ resists oxidation in harsh environments (-40°C to 105°C operational range)
‌Hexagonal crimp zone‌ prevents conductor slippage under vibration (IEC 61373 compliant)

‌UL 486C-certified‌ for 600V applications with salt spray resistance >500 hours.

Send email to us

Dimensions

Bolt Size	1/4in
Hole Spacing (H)	5/8 in
Tang Width (C)	0.61 in
Barrel length (B)	1.38 in
Overall length (L)	1.83 in
Inner diameter (ID)	0.31 in
Outer diameter(OD)	0.42 in

General Specifications

Colour Code	Brown
Material	Copper
Tongue Type	Standard
Tongue Angle	90 degree
Surface	Tin-plated
Inspection Window	Without inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage	35KV
Environmental Specifications
Operating Temperature	-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature	-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
Included	Lug
Packaging Quantity and UOM	1 pcs
Certifications
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
